How to Create a Realistic Neon Light Text Effect in Adobe Photoshop

by
Difficulty:IntermediateLength:MediumLanguages:
Final product image
What You'll Be Creating

Layering glow and gloss effects can help create nice, shiny objects. Learn how to modify a brick texture for the background, and then use layer styles with the Pen Tool to add some bright, glowing neon text and a simple cable over it.

If you're in a hurry though, and are looking for a good quality solution, then we have an assortment of Photoshop Actions available for purchase, such as the Awesome Neon Text Effect Style Action.

Otherwise, this comprehensive tutorial will show you a complete and professional workflow. Let's get started!

Tutorial Assets

The following assets were used during the production of this tutorial:

1. Creating the Background

Step 1

Create a new 1500 x 950 px document, and set the Resolution to 300.

Go to File > Place Embedded, and open the BrickOldRounded0061 image. Resize it as you like, and then tap the Return key to accept the changes.

Place the Brick Texture

Step 2

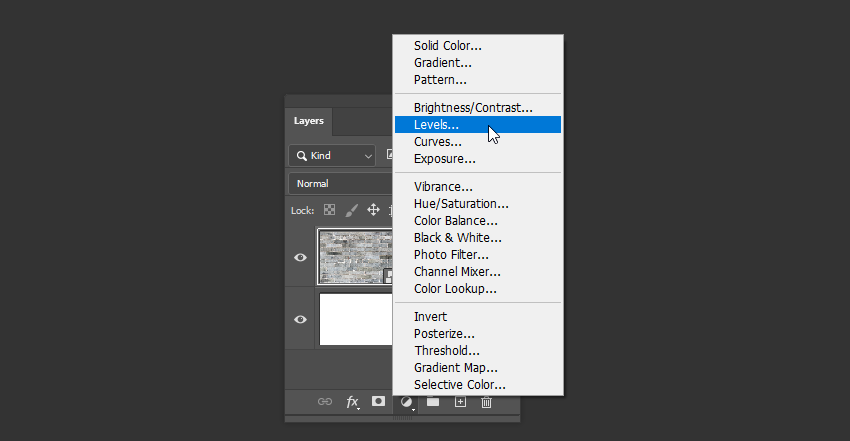

Click the Create new fill or adjustment layer icon at the bottom of the Layers panel and choose Levels.

Levels

Step 3

Click the Clip adjustment to layer icon at the bottom of the Properties panel, and then change the Shadows value to 85.

Levels Values

Step 4

Click the Create new fill or adjustment layer icon again and choose Hue/Saturation. Click the Clip adjustment to layer icon at the bottom of the Properties panel, and then change the Saturation to 11, and the Lightness to -83.

Hue Saturation

2. Creating the Text

Step 1

Create the text in All Caps using the font Beon Medium. The color is #a33e88 and the Size is 103 pt.

Create the Text

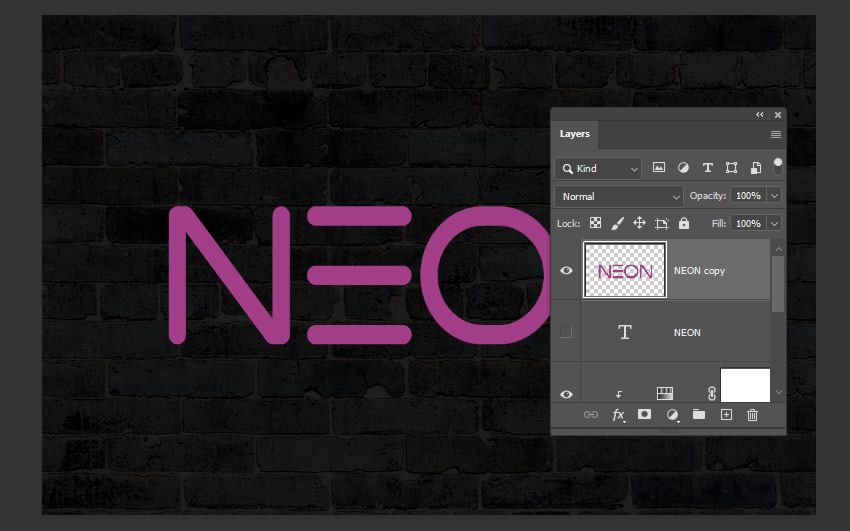

Step 2

Duplicate the text layer and make it invisible by clicking the eye icon next to it. Then right-click the copy and choose Rasterize Type.

What we'll be doing next is separating the vertical and diagonal parts of the letters from the horizontal ones, in order to apply the effects using different Angle values.

Rasterize Type

Step 3

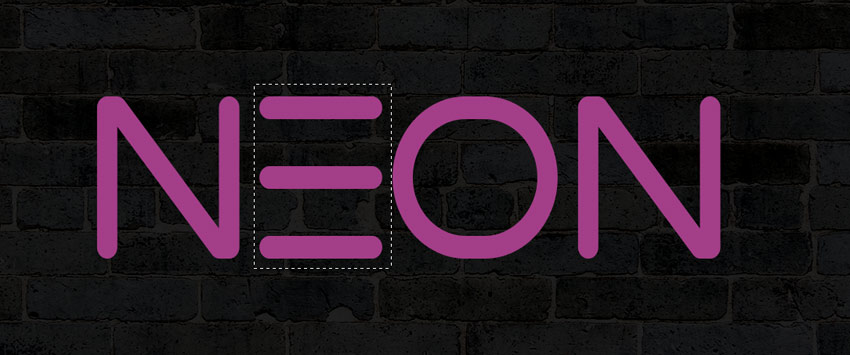

Pick the Rectangular Marquee Tool (or any selection tool you like), click the Add to selection icon in the Options bar, and select all the horizontal parts of the letters you have.

Select Horizontal Parts

Step 4

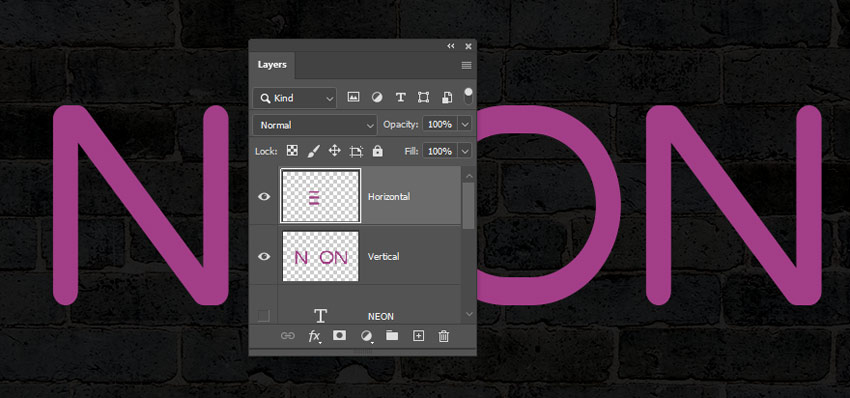

Go to Edit > Cut, and then Edit > Paste Special > Paste in Place. This will place the selected parts in a separate layer. Rename the layers to Vertical and Horizontal.

Separate Vertical and Horizontal Parts

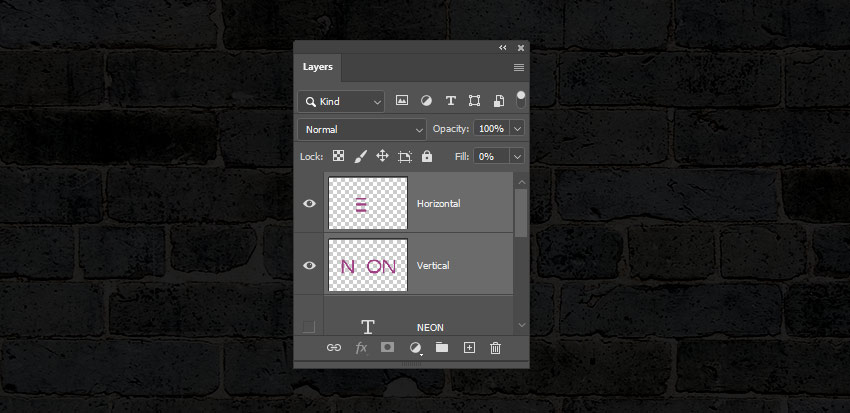

Step 5

Change both the Vertical and Horizontal layers' Fill values to 0.

Fill Value

Step 6

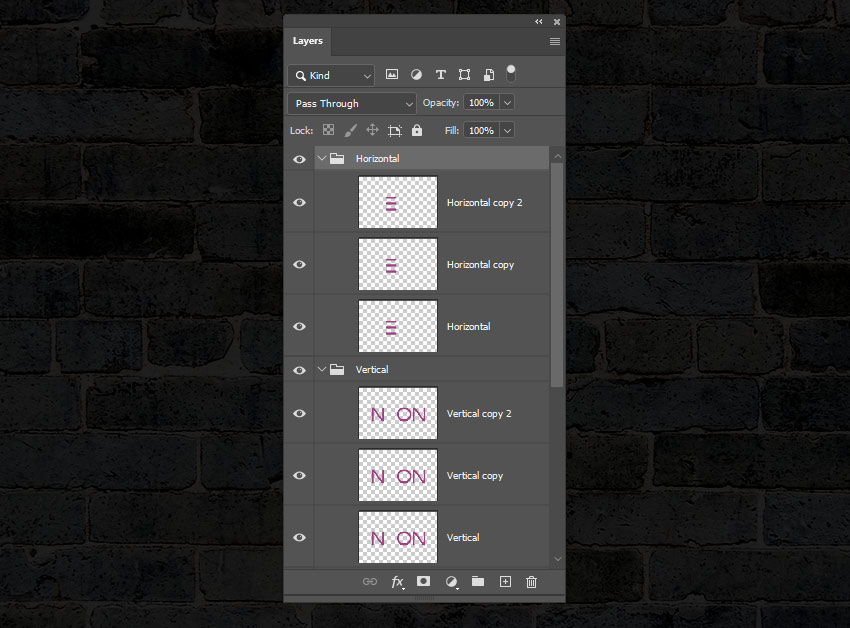

Duplicate each of the Vertical and Horizontal layers twice, and then place each set of layers in a group that has its name (Vertical/Horizontal).

Duplicate and Group Layers

Step 7

Place the Horizontal group below the Vertical one.

Group Order

3. Styling the Original Horizontal Layer

Double-click the original Horizontal layer to apply the following layer style:

Step 1

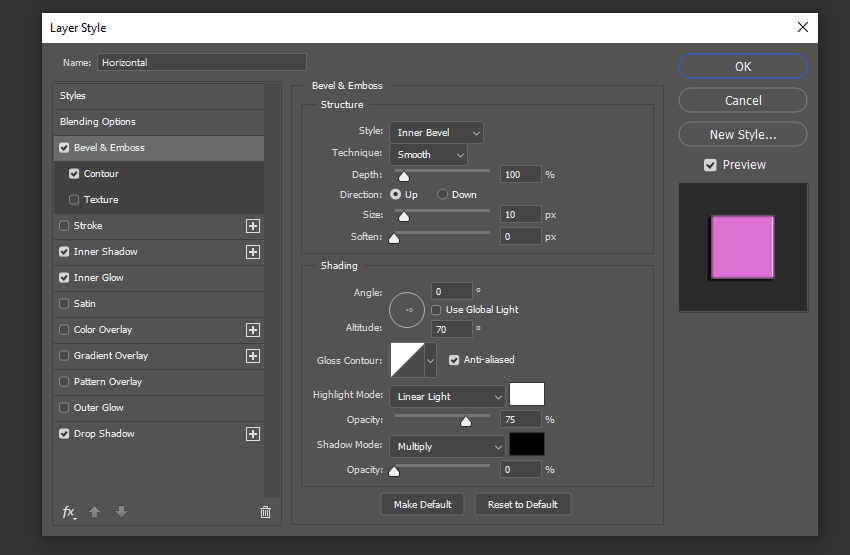

Add a Bevel and Emboss with these settings:

  • Size: 10
  • Uncheck the Use Global Light box
  • Angle: 0
  • Altitude: 70
  • Check the Anti-aliased box
  • Highlight Mode: Linear Light
  • Shadow Mode - Opacity: 0%
Bevel and Emboss

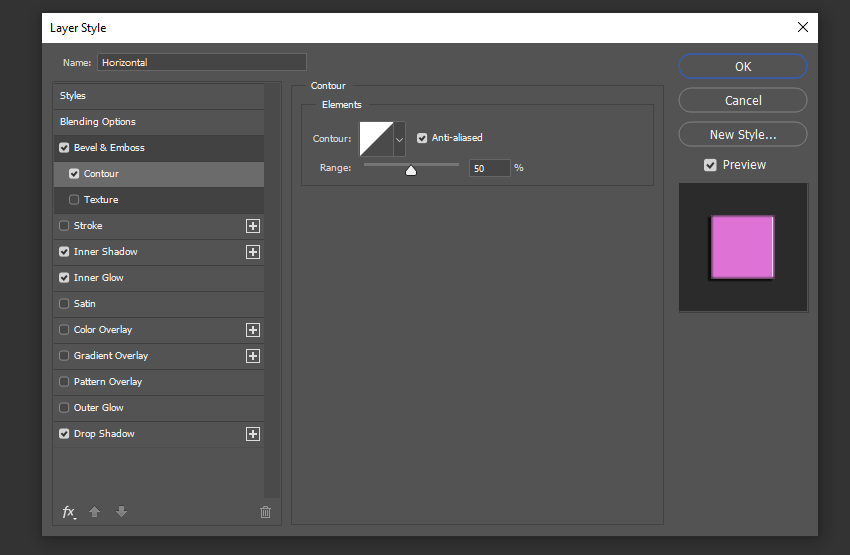

Step 2

Add a Contour with these settings:

  • Check the Anti-aliased box.
Contour

Step 3

Add an Inner Shadow with these settings:

  • Blend Mode: Screen
  • Color: #e658d4
  • Angle: 30
  • Distance: 0
Inner Shadow

Step 4

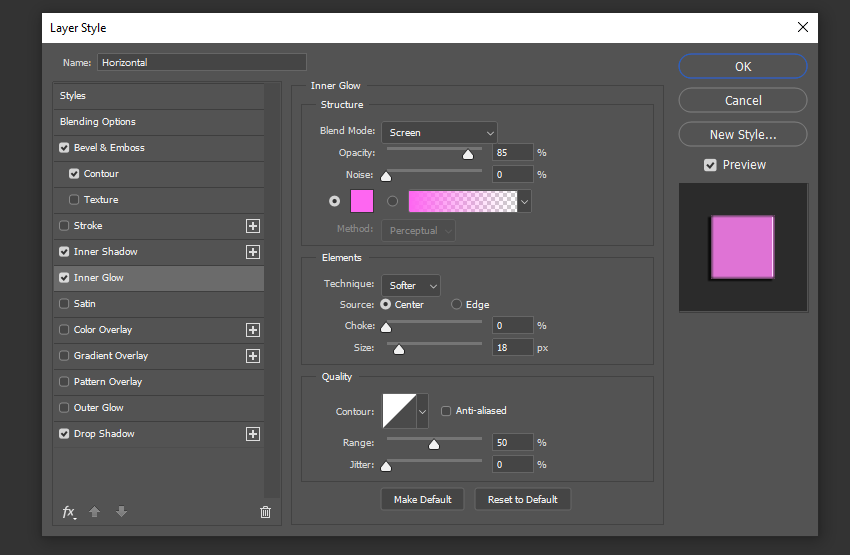

Add an Inner Glow with these settings:

  • Opacity: 85%
  • Color: #fe66f1
  • Source: Center
  • Size: 18
Inner Glow

Step 5

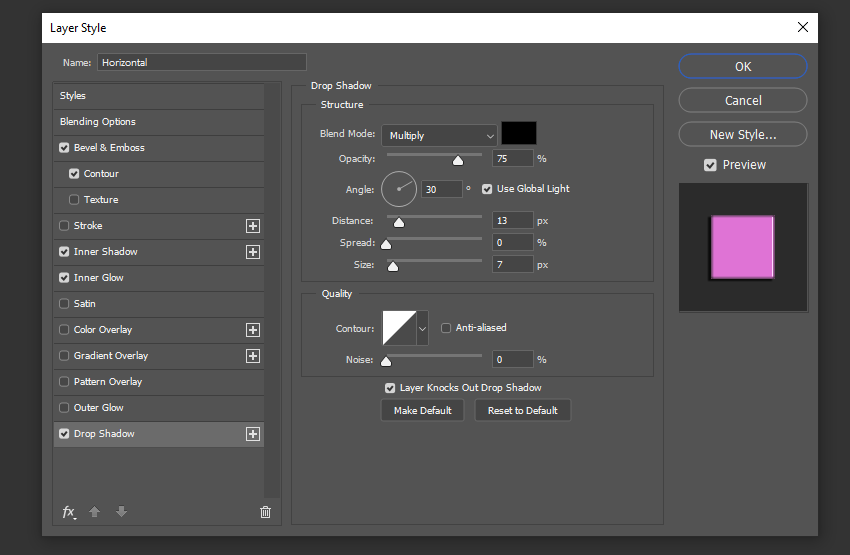

Add a Drop Shadow with these settings:

  • Distance: 13
  • Size: 7
Drop Shadow

This will style the first layer of the horizontal part.

Styled Original Horizontal Layer

4. Styling the First Copy Horizontal Layer

Double-click the first copy Horizontal layer to apply the following layer style:

Step 1

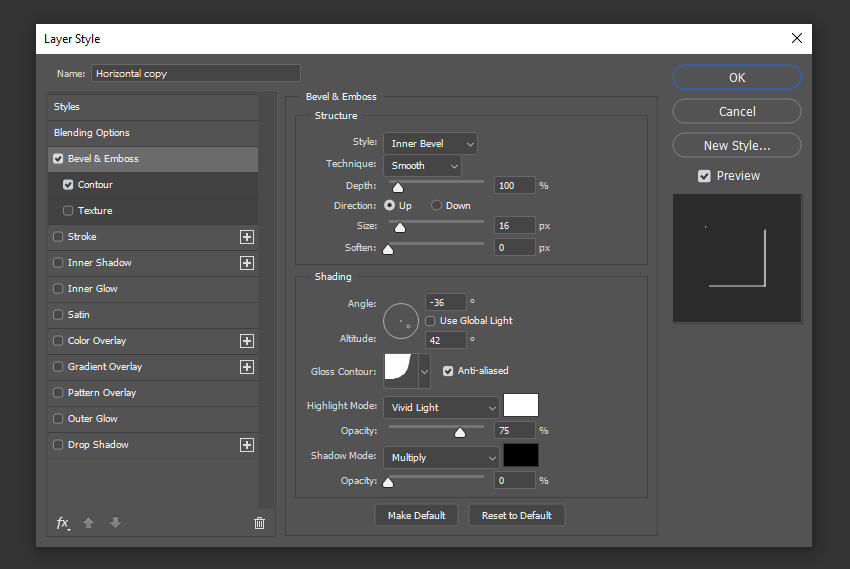

Add a Bevel and Emboss with these settings:

  • Size: 16
  • Uncheck the Use Global Light box
  • Angle: -36
  • Altitude: 42
  • Contour: Cove - Deep
  • Check the Anti-aliased box
  • Highlight Mode: Vivid Light
  • Shadow Mode - Opacity: 0%
Bevel and Emboss

Step 2

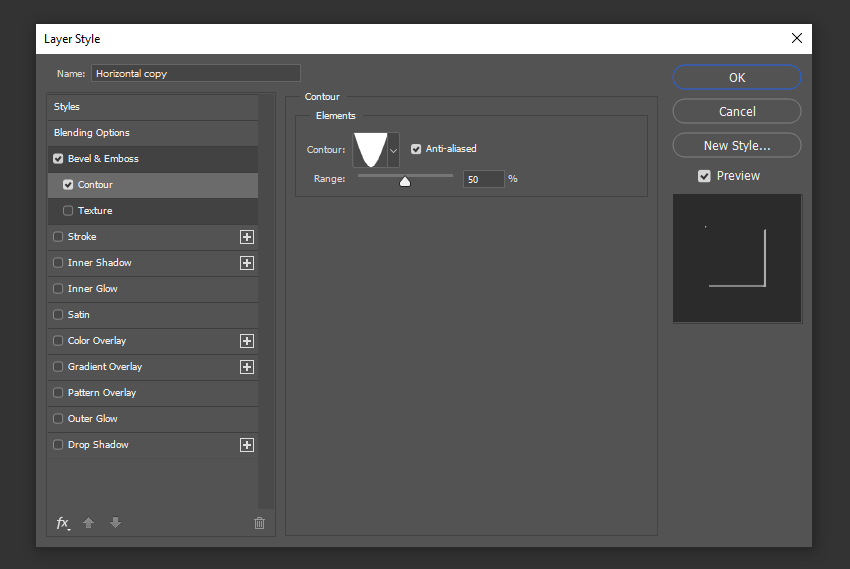

Add a Contour with these settings:

  • Contour: Cone - Inverted
  • Check the Anti-aliased box
Contour

This will add more gloss to the text.

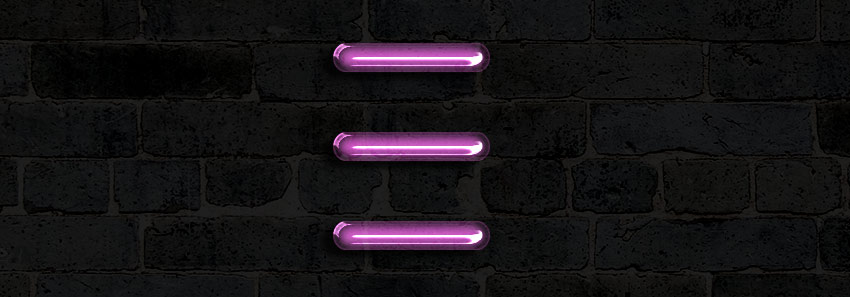

Styled First Copy Horizontal Layer

5. Styling the Second Copy Horizontal Layer

Double-click the second copy Horizontal layer to apply the following layer style:

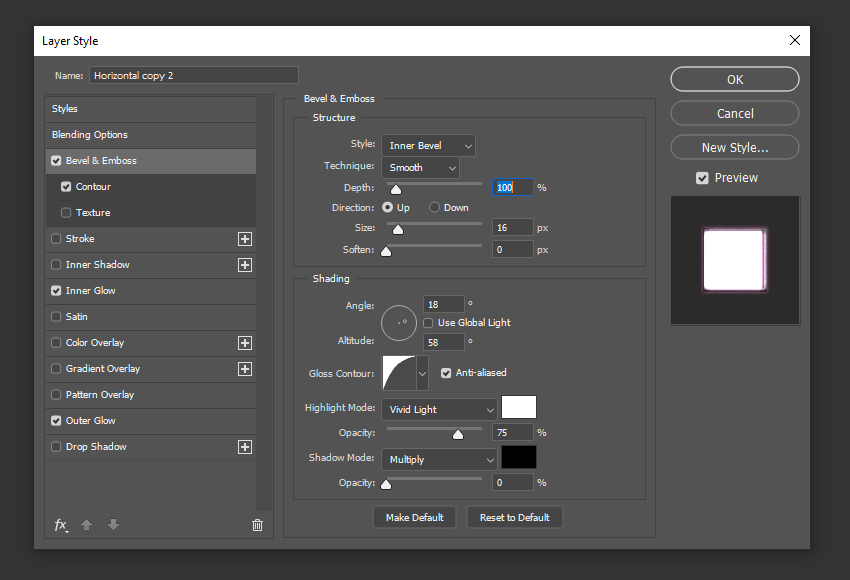

Step 1

Add a Bevel and Emboss with these settings:

  • Size: 16
  • Uncheck the Use Global Light box
  • Angle: 18
  • Altitude: 58
  • Contour: Half Round
  • Check the Anti-aliased box
  • Highlight Mode: Vivid Light
  • Shadow Mode - Opacity: 0%
Bevel and Emboss

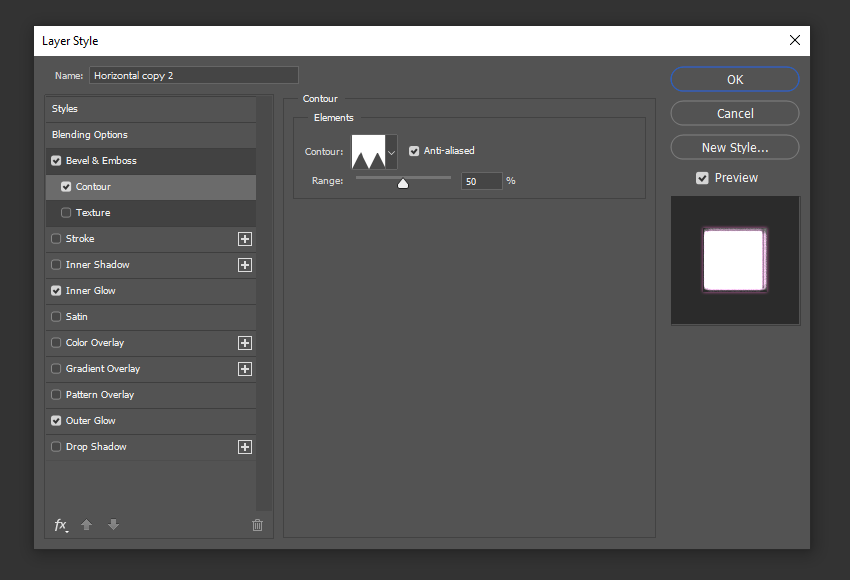

Step 2

Add a Contour with these settings:

  • Contour: Sawtooth 2
  • Check the Anti-aliased box
Contour

Step 3

Add an Inner Glow with these settings:

  • Blend Mode: Linear Light
  • Noise: 5%
  • Color: #ffdcfa
  • Source: Center
  • Size: 38
Inner Glow

Step 4

Add an Outer Glow with these settings:

  • Color: #7f2d65
  • Size: 15
Outer Glow

This will style the final horizontal layer, adding even more gloss and glow.

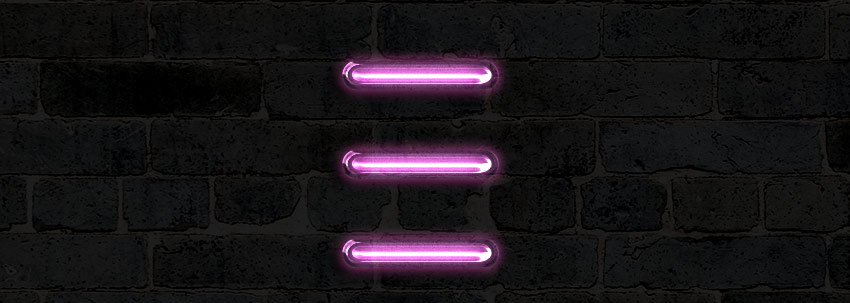

Styled Second Copy Horizontal Layer

6. Styling the Original Vertical Layer

Step 1

Right-click the original Horizontal layer, choose Copy Layer Style, and then right-click the original Vertical layer, and choose Paste Layer Style.

Double-click the original Vertical layer to adjust the Bevel and Emboss's Angle and Altitude values, by changing them to 90 and 74.

Bevel and Emboss

Step 2

For the Inner Glow, just change the Size to 15.

Inner Glow

This will adjust the effect to suit the vertical and diagonal parts.

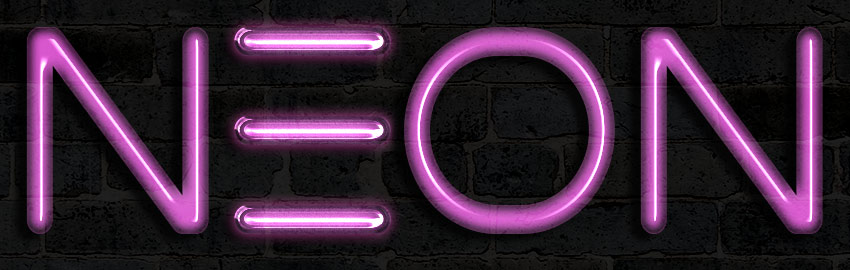

Modified Style for the Original Vertical Layer

7. Styling the First Copy Vertical Layer

Copy and paste the first copy Horizontal layer's layer style to the first copy Vertical layer, and then double-click the Vertical copy layer to change the Bevel and Emboss effect's Angle to -76, and its Altitude to 53.

Bevel and Emboss

That's it for the first copy layer.

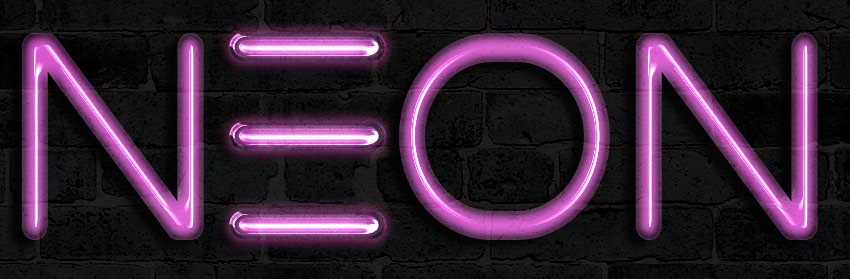

Modified Style for the First Copy Vertical Layer

8. Styling the Second Copy Vertical Layer

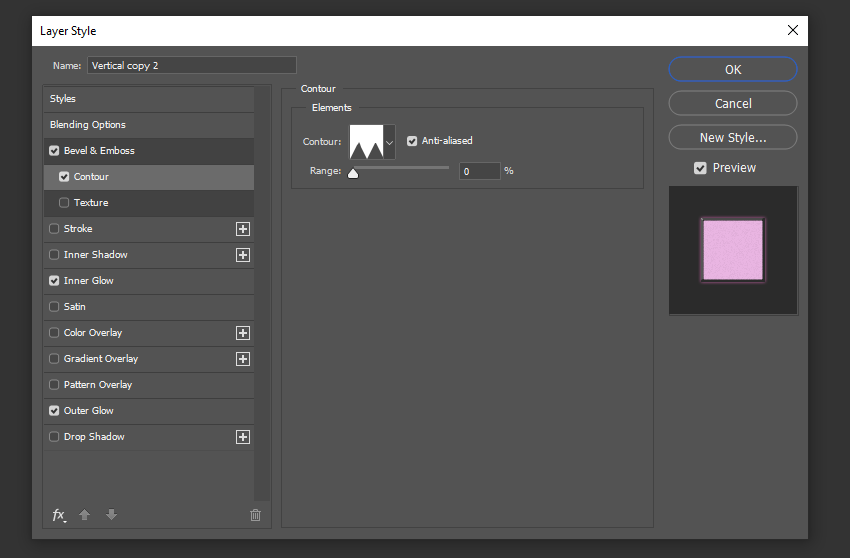

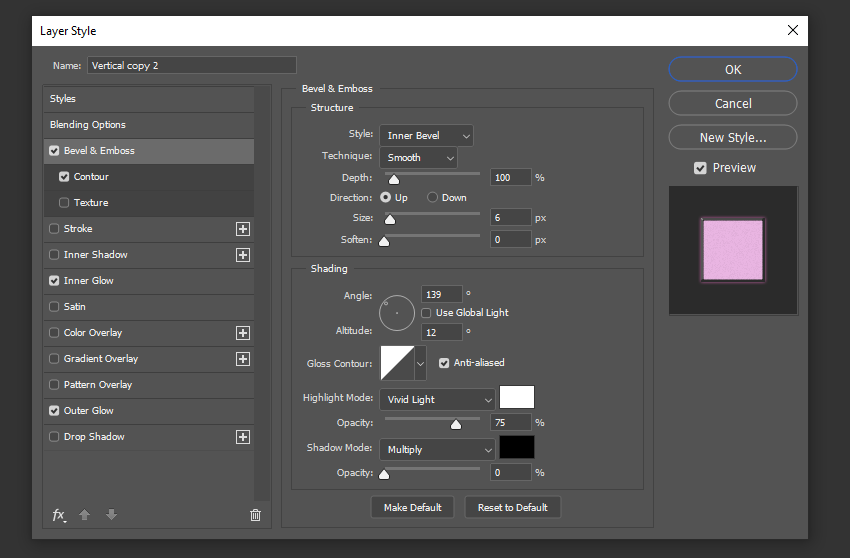

Copy and paste the second copy Horizontal layer's layer style to the second copy Vertical layer, and then double-click the Vertical copy 2 layer to change the Bevel and Emboss effect's Angle to -82, and its Altitude to 53.

Bevel and Emboss

That concludes styling both parts of the text.

Modified Style for the Second Copy Vertical Layer

9. Adding More Glow and Creating the Cable

Step 1

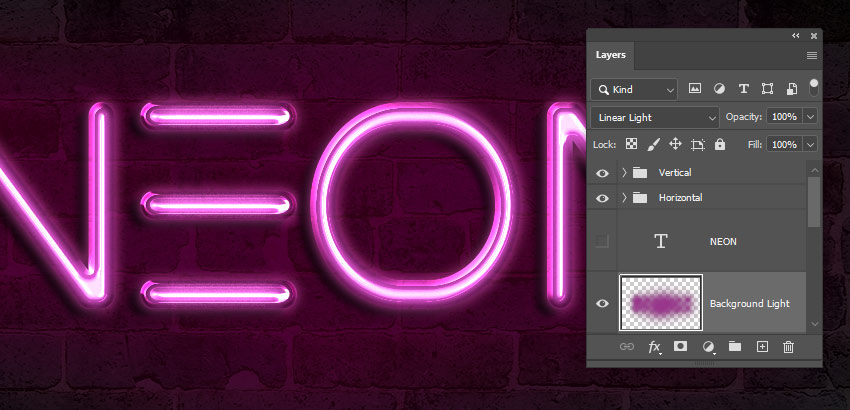

Create a new layer below the original invisible text layer, call it Background Light, and change its Blend Mode to Linear Light.

Set the Foreground color to #98338b, pick the Brush Tool, and choose a very big, soft, round tip. Then click once to add spots of color behind the text (don't click and drag, just dot the color).

Add Background Glow

Step 2

Create another new layer below the Background Light layer and call it Cable. Pick the Pen Tool and choose the Path option in the Options bar.

What you'll need to do next is create the paths where you want to add the cable. You can click to add corner anchor points, and click and drag to create curves. Keep in mind that the path created doesn't have to be perfect, as you can pick the Direct Selection Tool at any time later to adjust the anchor points or the direction handles.

Create the Cable Paths Using the Pen Tool

Step 3

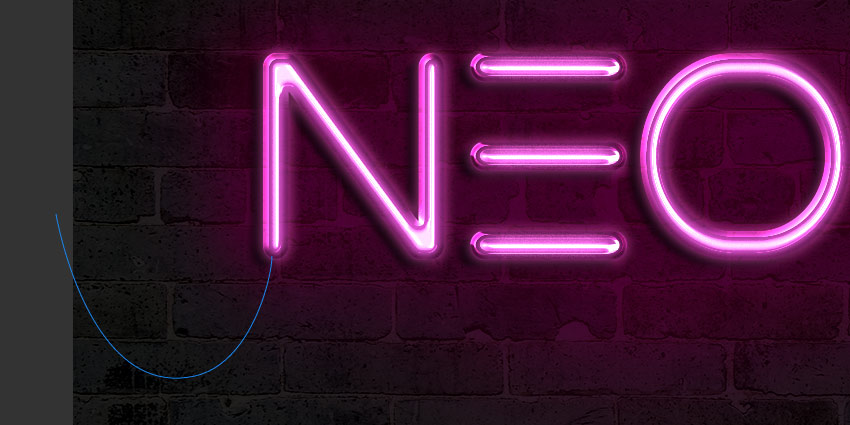

To separate the paths, press and hold the Command key, and click outside the path you've finished creating so that it won't be connected to the path you create after it.

Separating the Paths

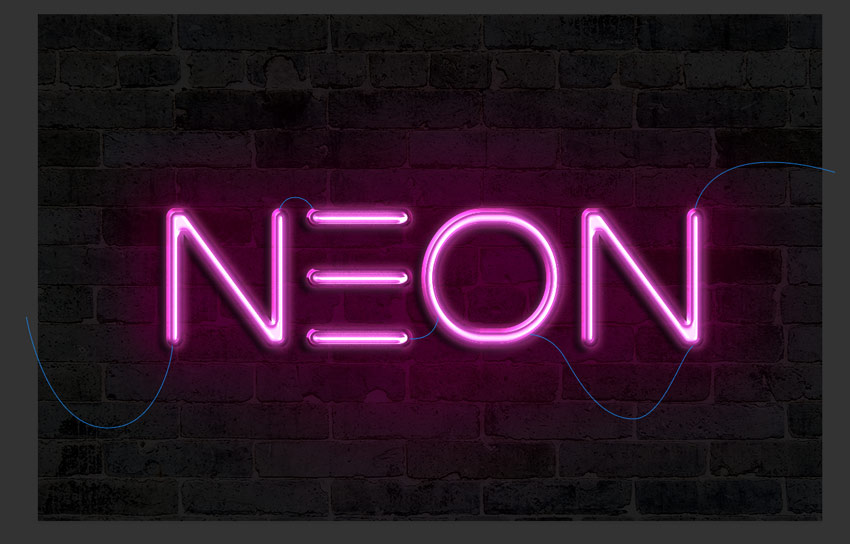

Step 4

Take your time with this step to get a neat outcome.

Finish Creating the Paths

Step 5

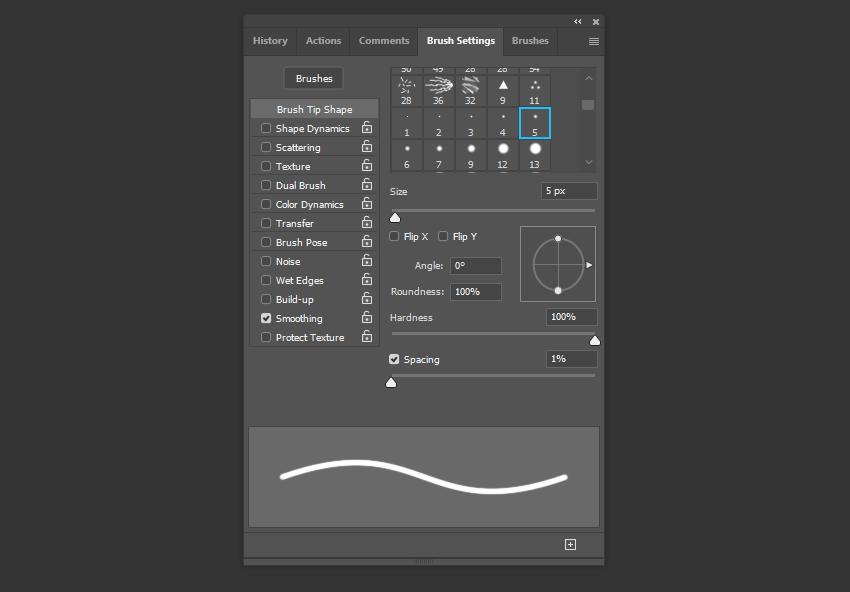

Pick the Brush Tool, and then open the Brush panel (Window > Brush), and choose a hard round 7 px tip with Spacing set to 1.

Brush Settings

Step 6

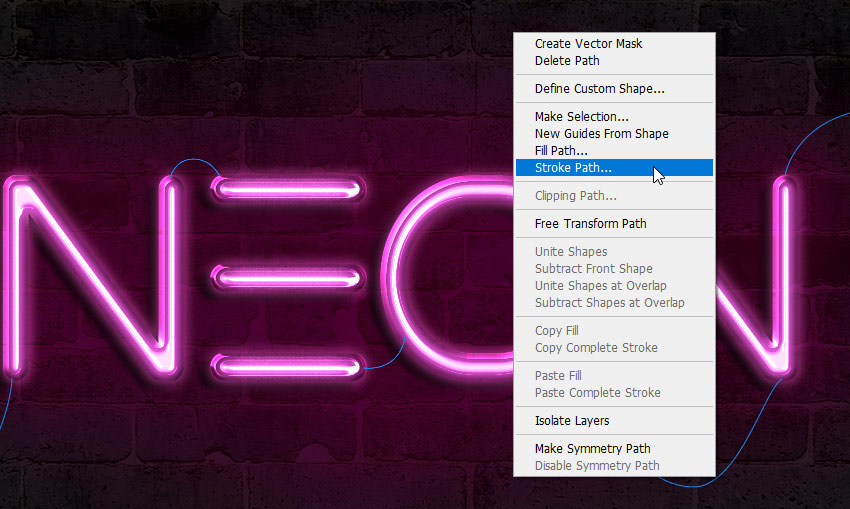

Set the Foreground color to #252525, pick the Direct Selection Tool, right-click the path and choose Stroke Path.

Stroke Path

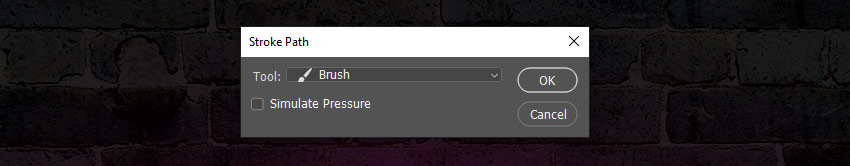

Step 7

Choose Brush from the Tool dropdown menu and uncheck the Simulate Pressure box.

Stroke Path Box

Step 8

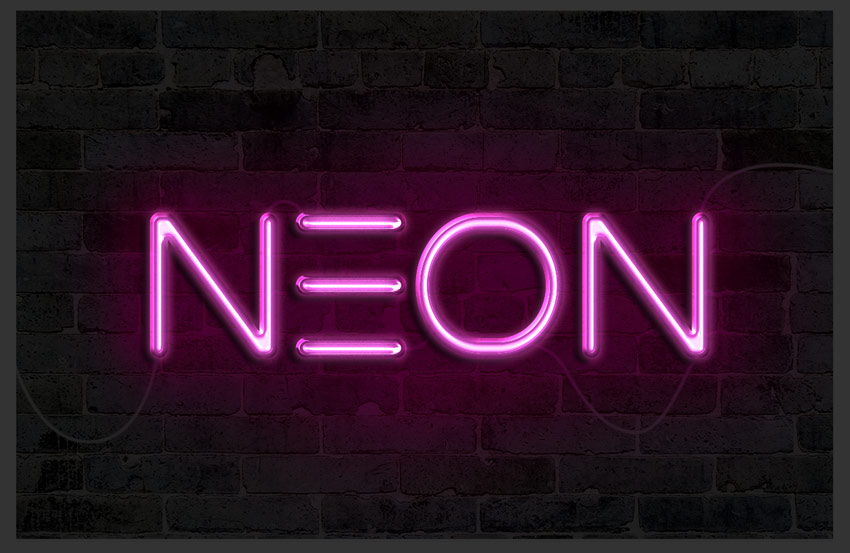

This will stroke the path. Hit the Return key to get rid of the work path.

Stroked Path

10. Styling the Cable

Double-click the Cable layer to apply the following layer style:

Step 1

Add a Bevel and Emboss with these settings:

  • Check the Anti-aliased box
  • Highlight Mode: Vivid Light
  • Color: #ec6ab7
  • Opacity: 24%
Bevel and Emboss

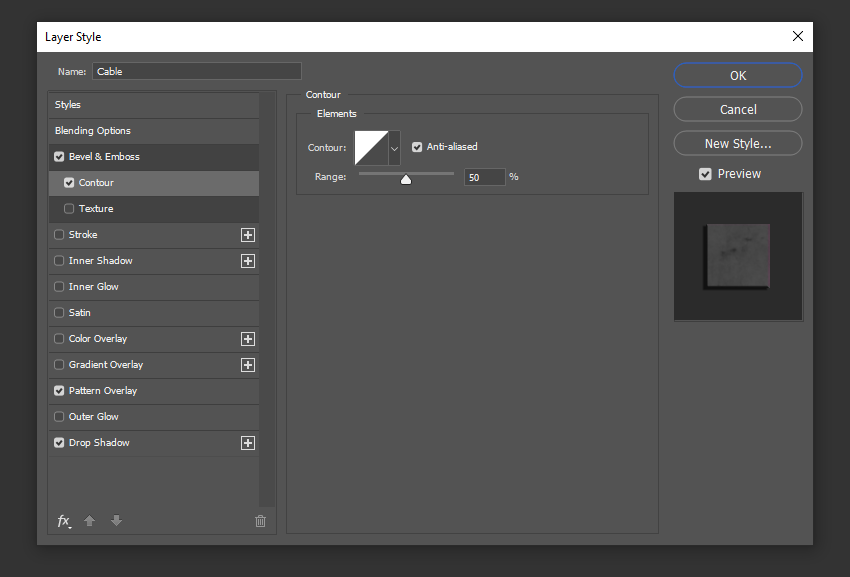

Step 2

Add a Contour with these settings:

  • Check the Anti-aliased box.
Contour

Step 3

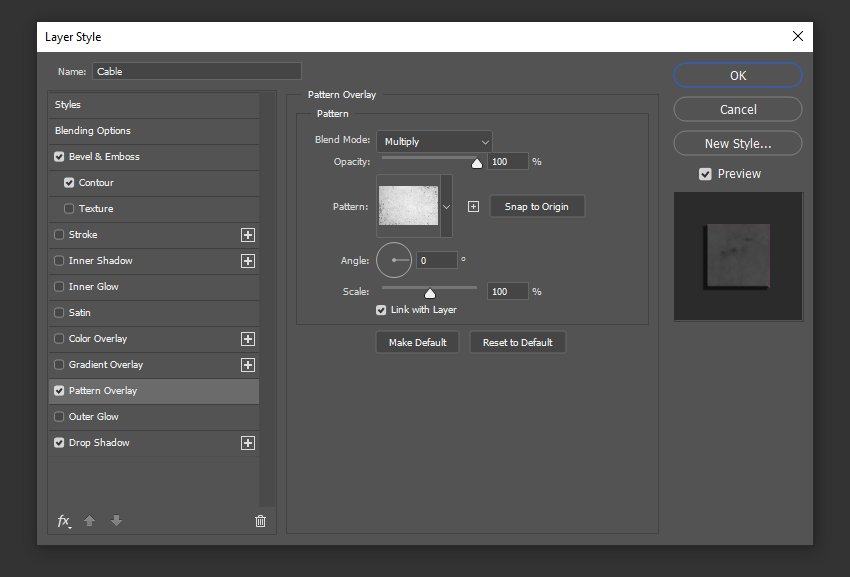

Add a Pattern Overlay with these settings:

  • Blend Mode: Multiply
  • Pattern: 8
Pattern Overlay

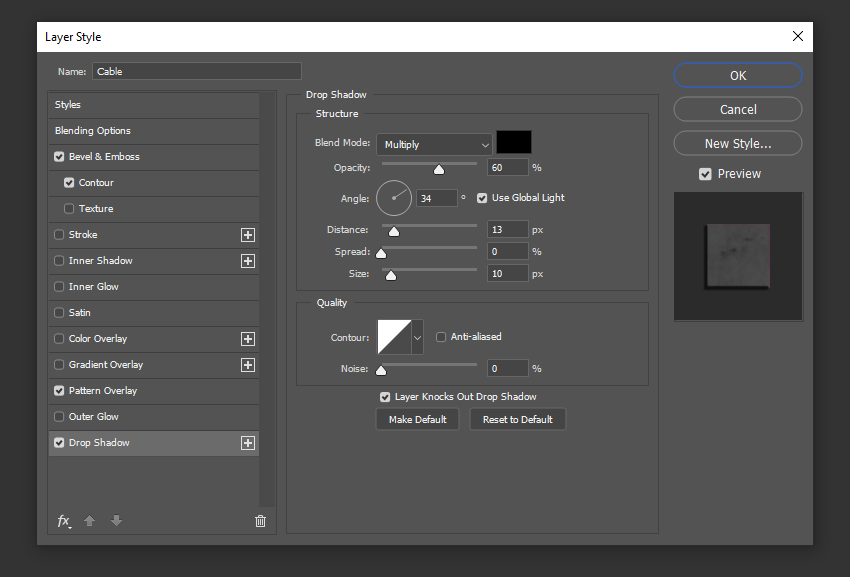

Step 4

Add a Drop Shadow with these settings:

  • Opacity: 60%
  • Distance: 13
  • Size: 10
Drop Shadow

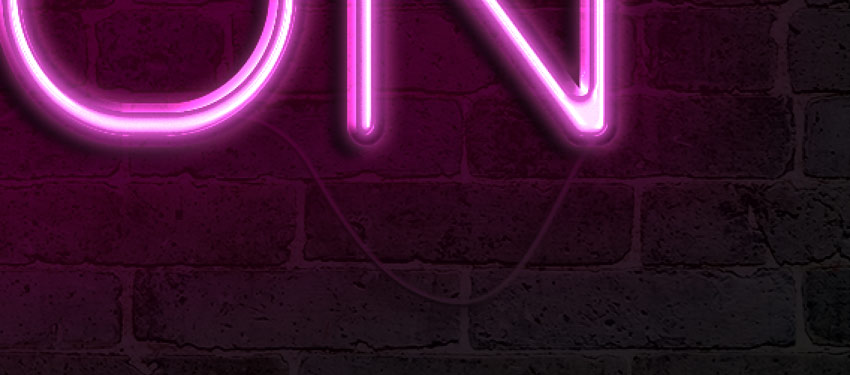

This will style the cable.

The Styled Cable

11. Creating the Clips

Step 1

Pick the Rectangle Tool and create an 11 x 15 px rectangle.

Create a Rectangle

Step 2

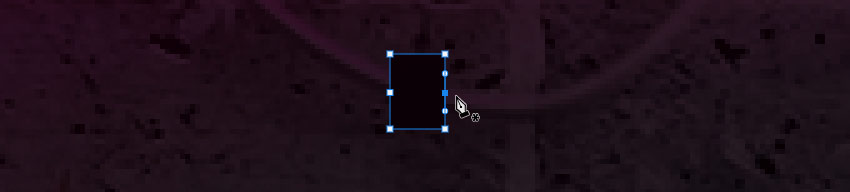

Pick the Add Anchor Point Tool and click to add two points in the center of both vertical sides of the rectangle.

Add Anchor Points

Step 3

Pick the Direct Selection Tool, click and drag to select the center points you added, and then press the Left Arrow Key once to move them 1 px to the left.

Move Anchor Points

Step 4

Duplicate the Rectangle layer and then go to Edit > Transform > Rotate 90° Clockwise. Rename the Rectangle layers to H (for horizontal) and V (for vertical).

Duplicate and Rename Rectangle Layers

12. Styling the Clips

Double-click the H layer to apply the following layer style:

Step 1

Add a Gradient Overlay with these settings:

  • Opacity: 42%
  • Click the Gradient box to create the gradient using the colors #151515 to the left, #6d6d6d in the center, and #161616 to the right.
Gradient Overlay

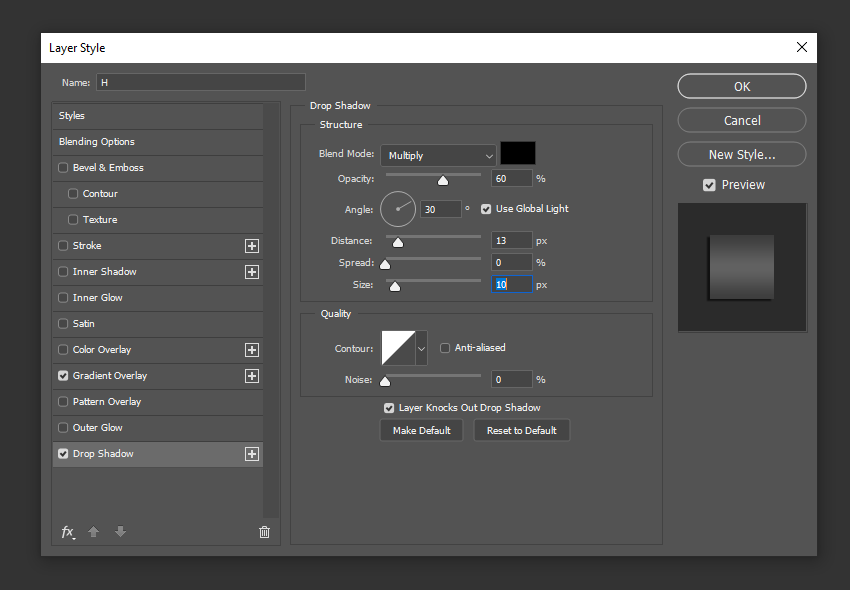

Step 2

Add a Drop Shadow with these settings:

  • Opacity: 60%
  • Distance: 13
  • Size: 10
Drop Shadow

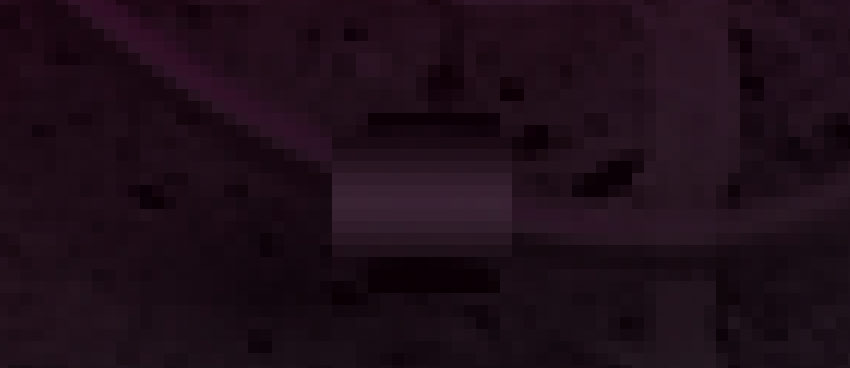

This will style the horizontal clip.

Styled Horizontal Clip

Step 3

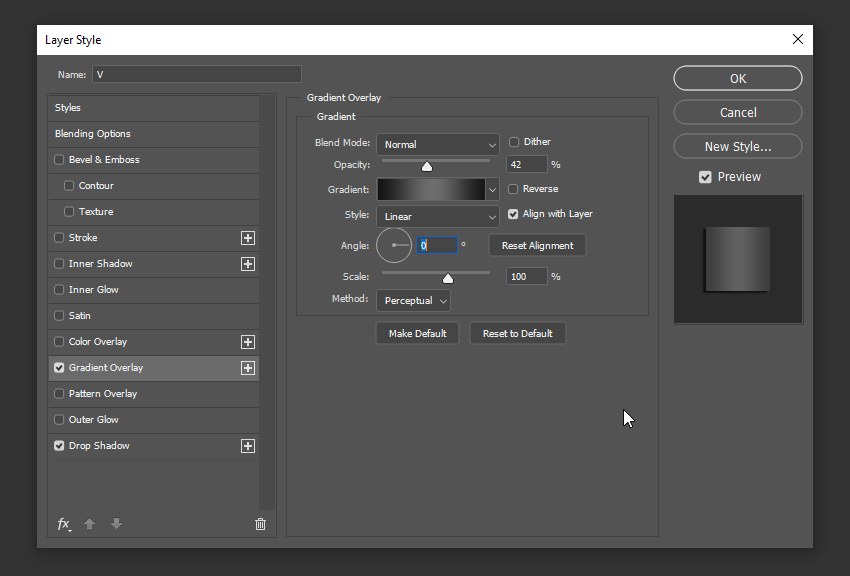

Copy and paste the H layer's layer style to the V layer, and then double-click the V layer to change the Gradient Overlay's Angle value to 0.

Gradient Overlay

Step 4

Next, duplicate and place the clip layers wherever you want to add clips to the cable you created.

Duplicate and Place Clips

13. Adding One More Coloring Layer

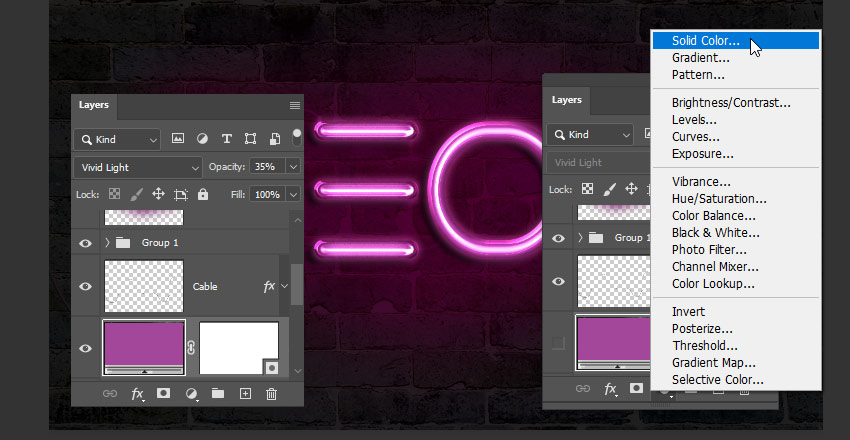

Click the Create new fill or adjustment layer icon and choose Solid Color. Use the color #a34799, place the adjustment layer below the Cable layer, and change its Blend Mode to Vivid Light. This will apply the color to the bricks behind the text, and enhance the glow and lighting of the final result.

Solid Color Adjustment Layer

Congratulations! You're Done

In this tutorial, we modified a brick texture background and darkened it a little bit. Then we created the text, rasterized its layer, and separated the horizontal parts from the vertical and diagonal ones.

After that, we duplicated and grouped the separated text layers, and styled all of them to achieve the glossy-glowing effect.

Once the main text was created and styled, we added some more glow to the background, and used the Pen Tool to create the cable's path. We stroked the path and styled it to give it a 3D look.

Finally, we used the Rectangle Tool to create some clips for the cable, modified and styled them, and added one last adjustment layer to enhance the coloring of the final result.

Need premium Photoshop Actions or Text Effects, we have them available for purchase on GraphicRiver, such as the Awesome Neon Text Effect Style Action.

Please feel free to leave your comments, suggestions, and outcomes below.
