How to Create an Evil Dead Themed Icon Pack in Adobe Illustrator

by
Difficulty:IntermediateLength:LongLanguages:
This post is part of a series called Horror Movie Week.
How to Create a Frankenstein's Monster Photo Manipulation in Adobe Photoshop
Final product image
What You'll Be Creating

Today I have something really special and actually kind of gory prepped for all of you Evil Dead fans out there. Yup, today we are going to create a one of a kind themed icon pack that will blow your socks off, using some of the most basic tools that Illustrator has to offer.

Oh, and before I forget, you can always expand the pack, by checking out GraphicRiver where you’ll find tons of horror themed icon packs just waiting to be grabbed.

1. How to Set Up a New Document

Since I’m sure that you already have Illustrator up and running in the background, bring it up and let’s set up a New Document (File > New or Control-N) using the following settings:

Number of Artboards: 1

  • Width: 800 px
  • Height: 600 px
  • Units: Pixels

And from the Advanced tab:

  • Color Mode: RGB
  • Raster Effects: Screen (72ppi)
  • Align New Objects to Pixel Grid: checked

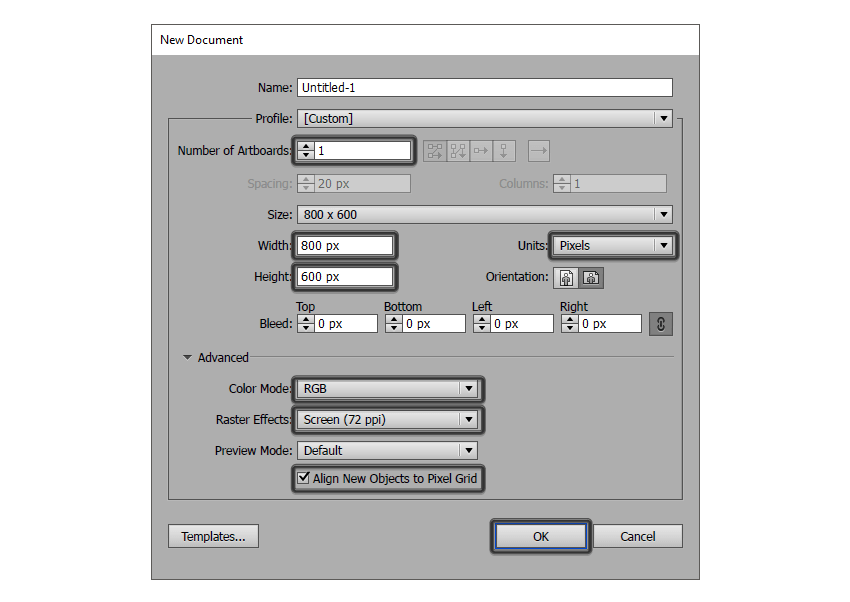

setting up a new document

2. How to Set Up a Custom Grid

Since we’re going to be creating the icons using a pixel-perfect workflow, we’ll want to set up a nice little Grid so that we can have full control over our shapes.

Step 1

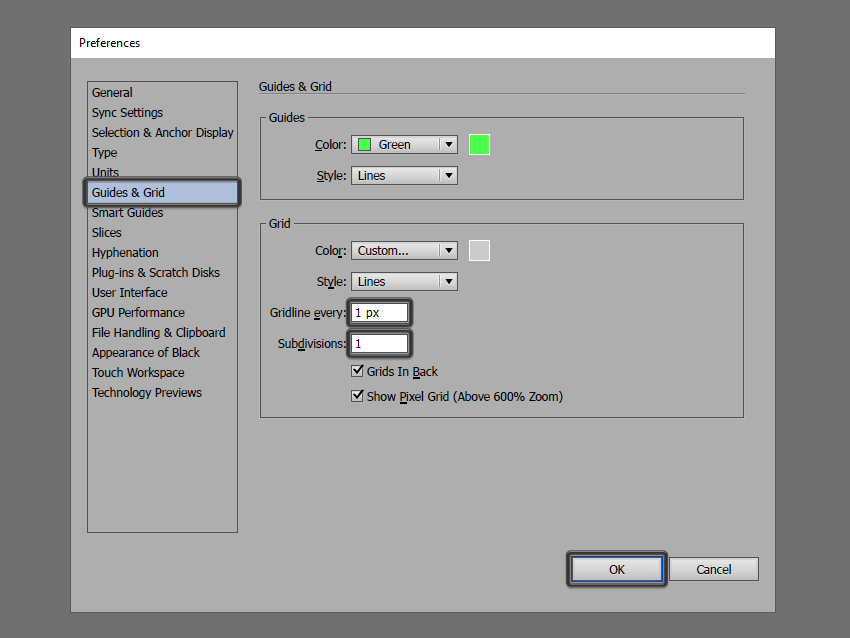

Go to the Edit > Preferences > Guides & Grid submenu, and adjust the following settings:

  • Gridline every: 1 px
  • Subdivisions: 1
setting up a custom grid

Quick tip: you can learn more about grids by reading this in-depth piece on how Illustrator’s Grid System works.

Step 2

Once we’ve set up our custom grid, all we need to do in order to make sure our shapes look crisp is enable the Snap to Grid option found under the View menu, which will transform into Snap to Pixel each time you enter Pixel Preview mode.

Now, if you’re new to the whole “pixel-perfect workflow”, I strongly recommend you go through my how to create pixel-perfect artwork tutorial, which will help you widen your technical skills in no time.

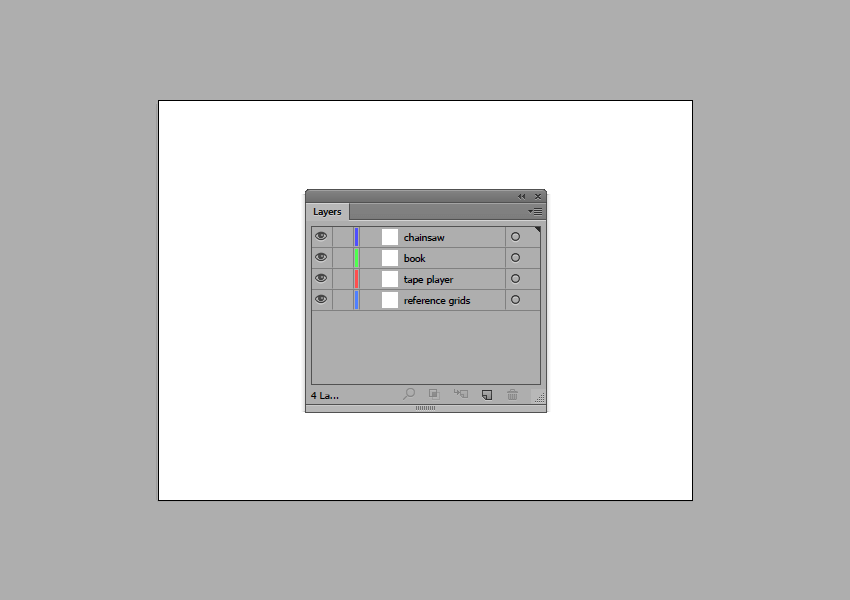

3. How to Set Up the Layers

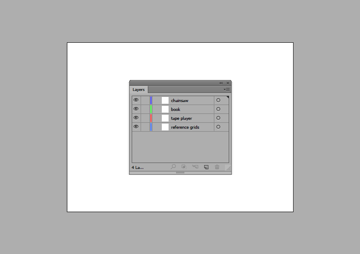

With the New Document created, it would be a good idea to structure our project using a couple of layers, since this way we can maintain a steady workflow by focusing on one icon at a time.

That being said, bring up the Layers panel, and create a total of four layers, which we will rename as follows:

  • layer 1 > reference grids
  • layer 2 > tape player
  • layer 3 > book
  • layer 4 > chainsaw
setting up the layers

4. How to Create the Reference Grids

The Reference Grids (or Base Grids) are a set of precisely delimited reference surfaces, which allow us to build our icons by focusing on size and consistency.

Usually, the size of the grids determines the size of the actual icons, and they should always be the first decision you make on you start a new project, since you’ll always want to start from the smallest possible size and build on that.

Now, in our case, we’re going to be creating the icon pack using just one size, more exactly 128 x 128 px, which is a fairly large one.

Step 1

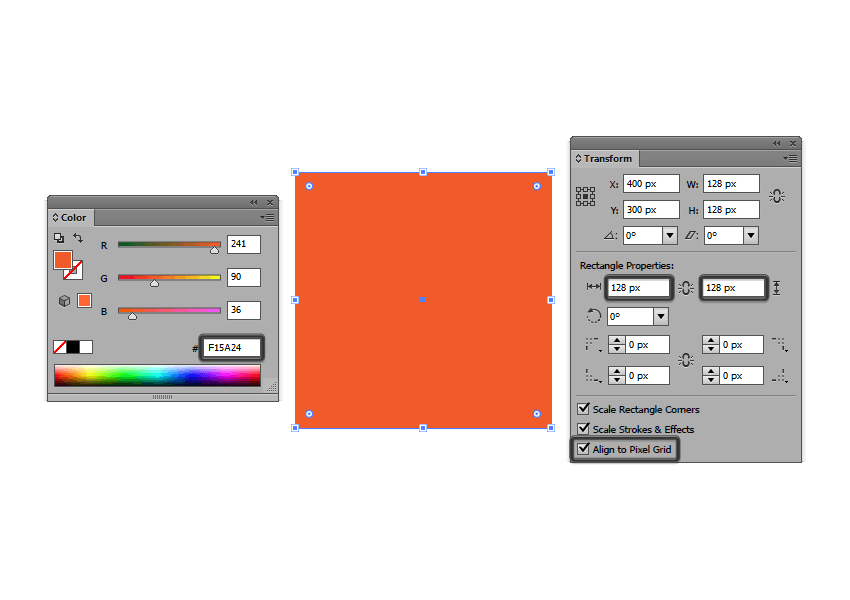

Start by locking all but the reference grid layer, and then grab the Rectangle Tool (M) and create a 128 x 128 px orange (#F15A24) square, which will help define the overall size of our icons.

creating the main shape for the reference grid

Step 2

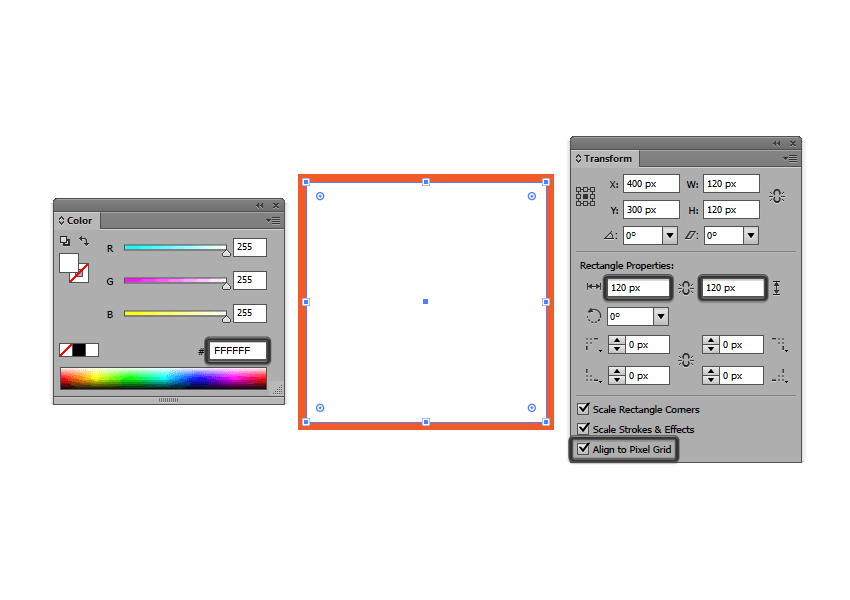

Add a smaller 120 x 120 px one (#FFFFFF) which will act as our active drawing area, thus giving us an all-around 4 px padding.

creating the main shape for the active drawing area

Step 3

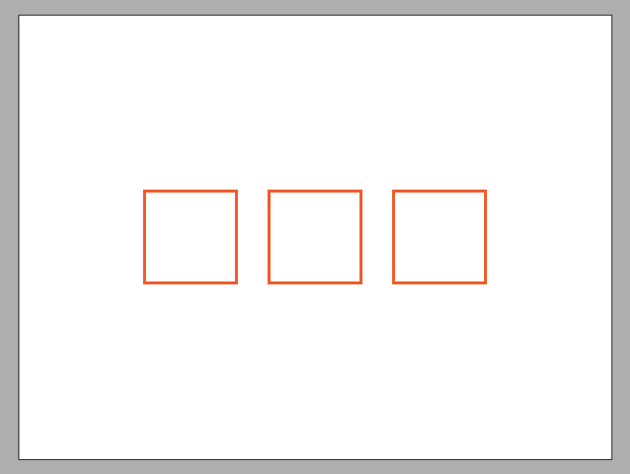

Group the two squares composing the reference grid using the Control-G keyboard shortcut, and then create two copies at a distance of 40 px from one another, making sure to align them to the center of the Artboard.

Once you’re done, lock the current layer and move on to the next one where we’ll start working on our first icon.

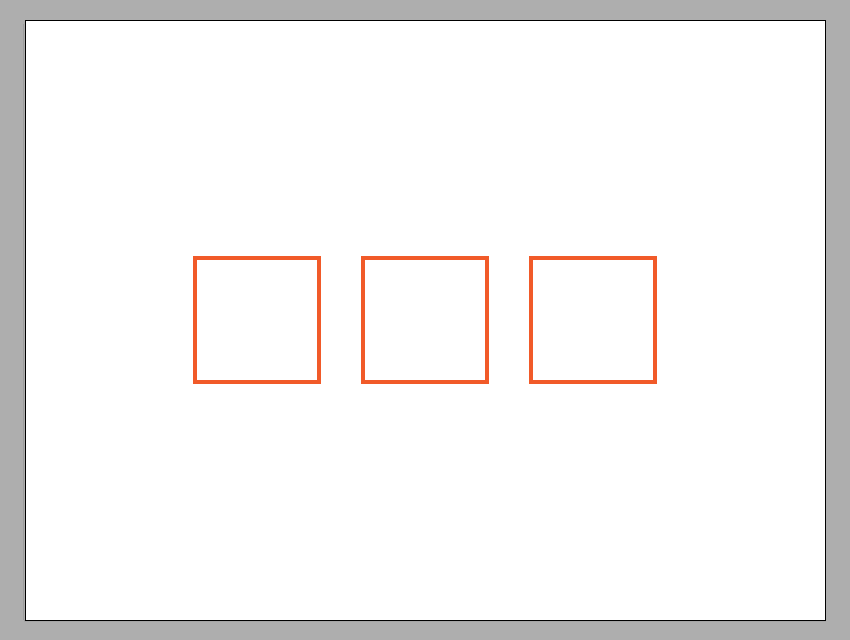

creating and positioning all three reference grids onto the artboard

5. How to Create the Tape Player/Recorder

We’re going to kick off the project, by creating the classic Panasonic tape recorder from the movie, so make sure you’re on the right layer (that would be the second one) and then zoom in on the first reference grid and let’s get started!

Step 1

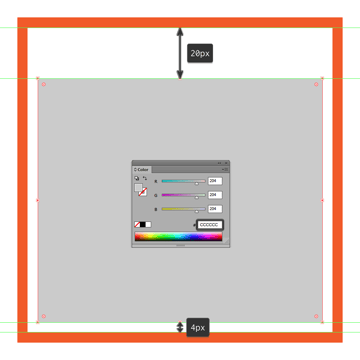

Create the main shape of the device by grabbing the Rectangle Tool (M) and using it to draw a 112 x 96 px rectangle (#CCCCCC), which we will position in the lower section of the active drawing area, leaving a 4 px gap for the outline.

creating and positioning the main shape for the tape recorders body

Step 2

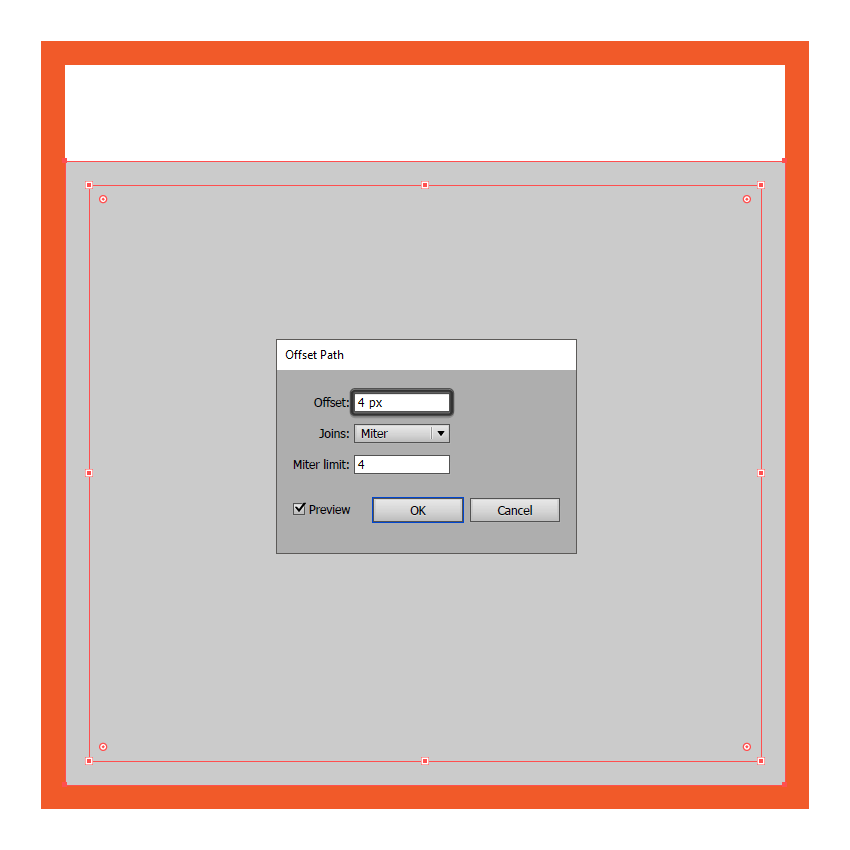

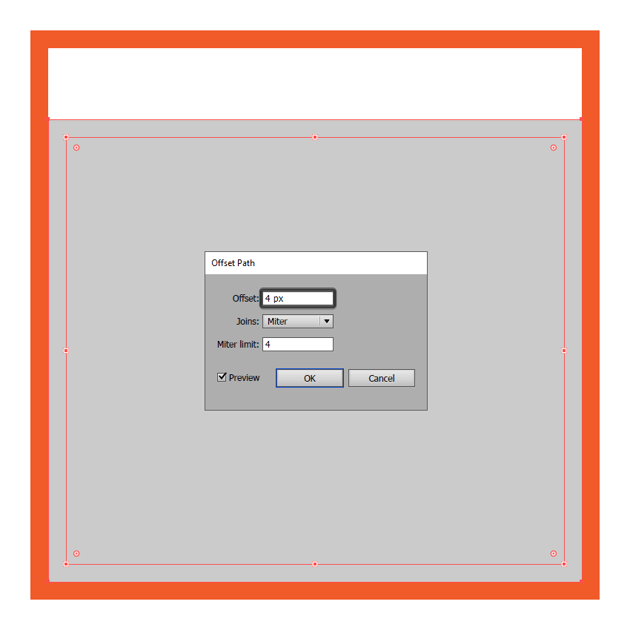

Give the shape that we’ve just created an outline using the Offset Path method, by selecting it and then going to Object > Path > Offset Path and entering 4 px into the Offset value field.

adding the outline to the tape recorders main body

Step 3

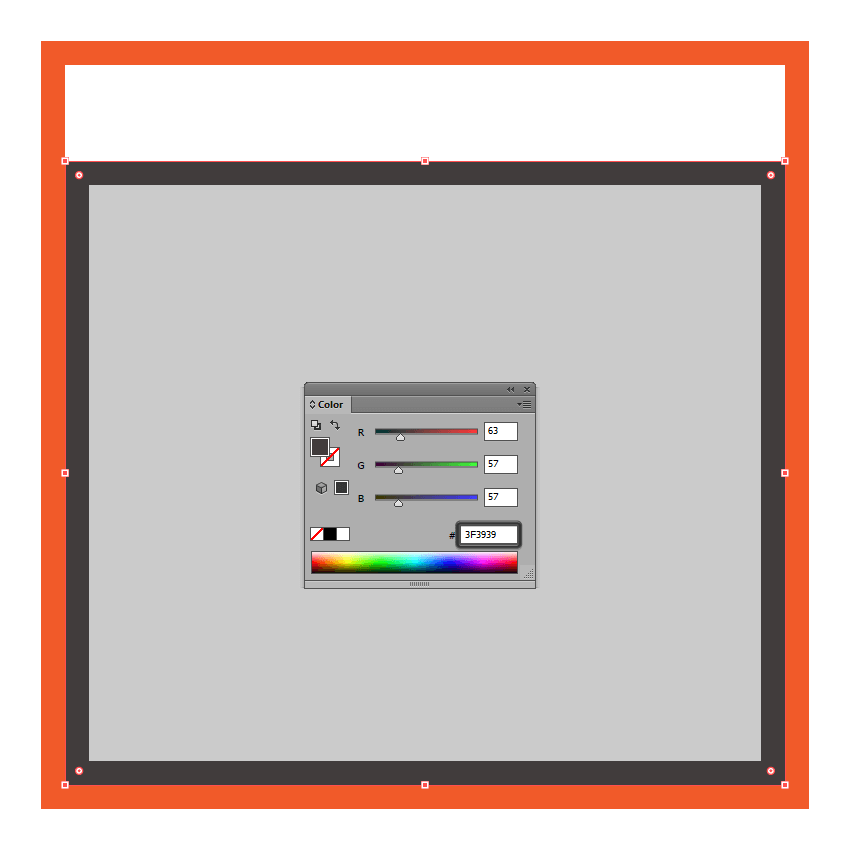

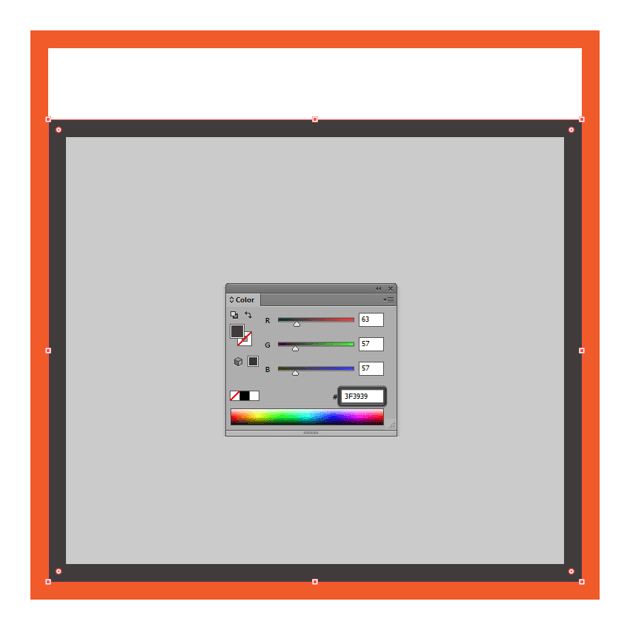

Change the fill color of the outline that we’ve just created to #3F3939 so that it will stand out from the grey shape.

adjusting the color of the tape recorders main outline

Step 4

Create the upper section of the recorder by adding a 112 x 56 px rectangle (#595252) to its top side, aligning it to the edge of the underlying shape.

adding the darker upper section to the tape recorders body

Step 5

Separate the darker section from the lighter one by adding a 112 x 4 px rectangle right underneath it, coloring it using (#3F3939).

adding the horizontal outline to the tape recorders darker section

Step 6

Add the little screws by creating four 4 x 4 px circles which we will color using #3F3939, and then position in the corners of the device, leaving a 2 px space gap around them.

Once you’re done, select and group all the shapes that we have so far using the Control-G keyboard shortcut.

adding the little screws to the tape recorders main body

Step 7

Start working on the left reel wheel, by creating a 44 x 44 px circle (#777373) with a 4 px thick outline (#3F3939) which we will group (Control-G) and then position in the recorder’s top-left corner.

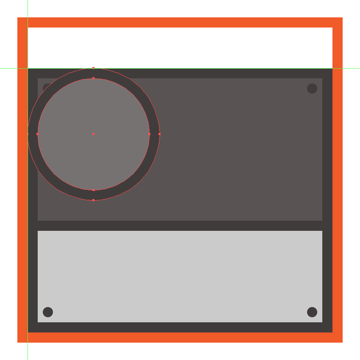

creating and positioning the main shapes for the tape recorders left reel wheel

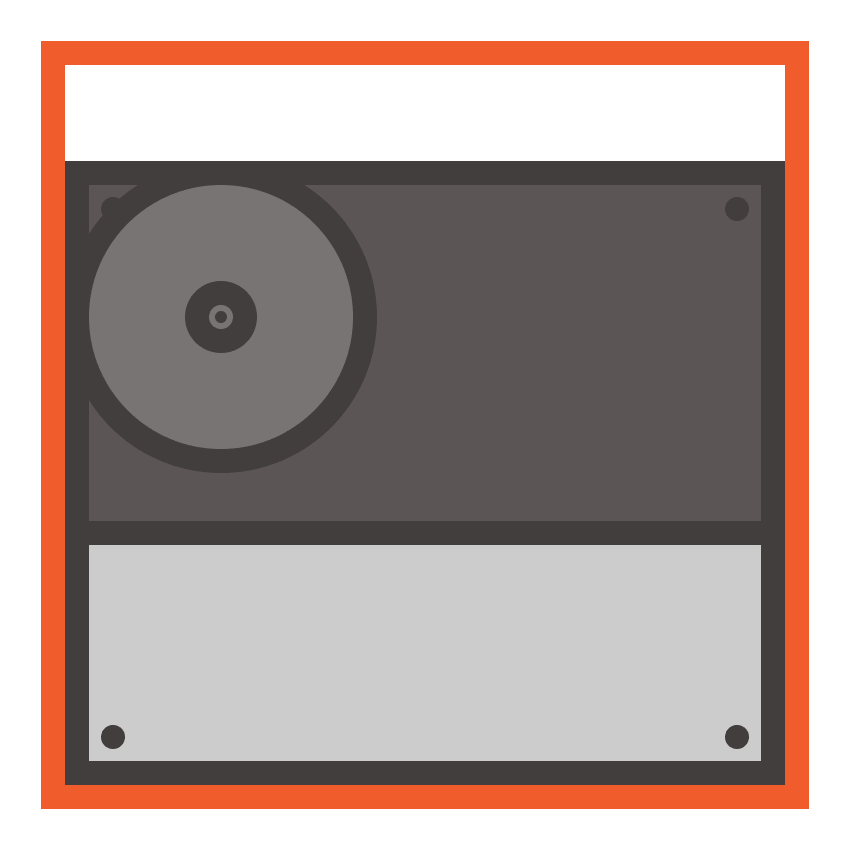

Step 8

Isolate the wheel by double clicking on it, and then create the center section by drawing a 12 x 12 px circle (#3F3939) on top of which we’ll add a smaller 4 x 4 px one (#CCCCCC), and an even smaller 2 x 2 px one (#3F3939) afterwards, grouping all three shapes together (Control-G).

adding the center section to the tape recorders left reel wheel

Step 9

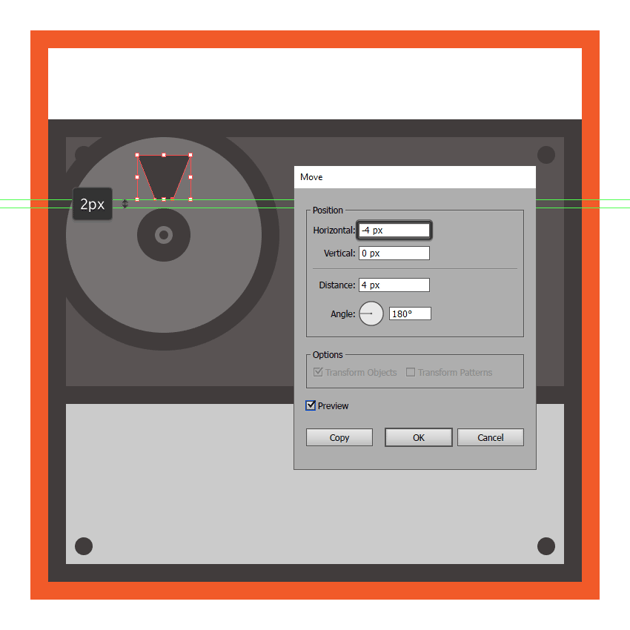

Start working on the little wheel cutouts by adding a 12 x 10 px rectangle (#3F3939) at a distance of 2 px from its center section, which we will adjust by individually selecting and pushing its bottom anchor points towards the inside by 4 px (right click > Transform > Move > Horizontal > + / - 4 px depending on which anchor you start with).

creating the main shape for the left reel wheels cutout

Step 10

Add the round section to the cutout’s top edge by creating a 12 x 4 px ellipse (#3F3939) which we will cut in half and then position over it, grouping the two shapes together (Control-G) afterwards.

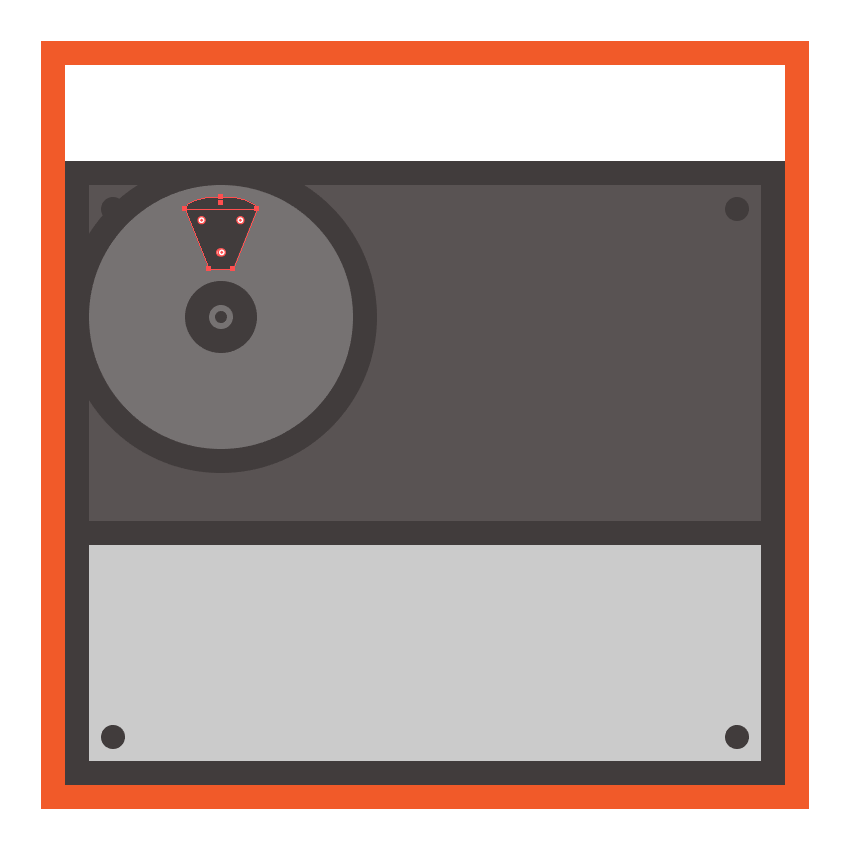

adding the round section to the left reel wheels top cutout

Step 11

Add the rest of the cutouts by creating three copies (Control-C > Control-F) of the one that we’ve just created, and then positioning them around the wheel’s center, keeping the same 2 px distance from it.

Once you’re done, exit Isolation Mode by pressing Escape.

adding the remaining cutouts to the tape recorders left reel wheel

Step 12

Add the right reel wheel to the opposite corner of the recorder, by creating a copy (Control-C > Control-F) of the one that we have, and then aligning it to the right side of the larger outline.

creating and positioning the second reel wheel onto the tape recorders right side

Step 13

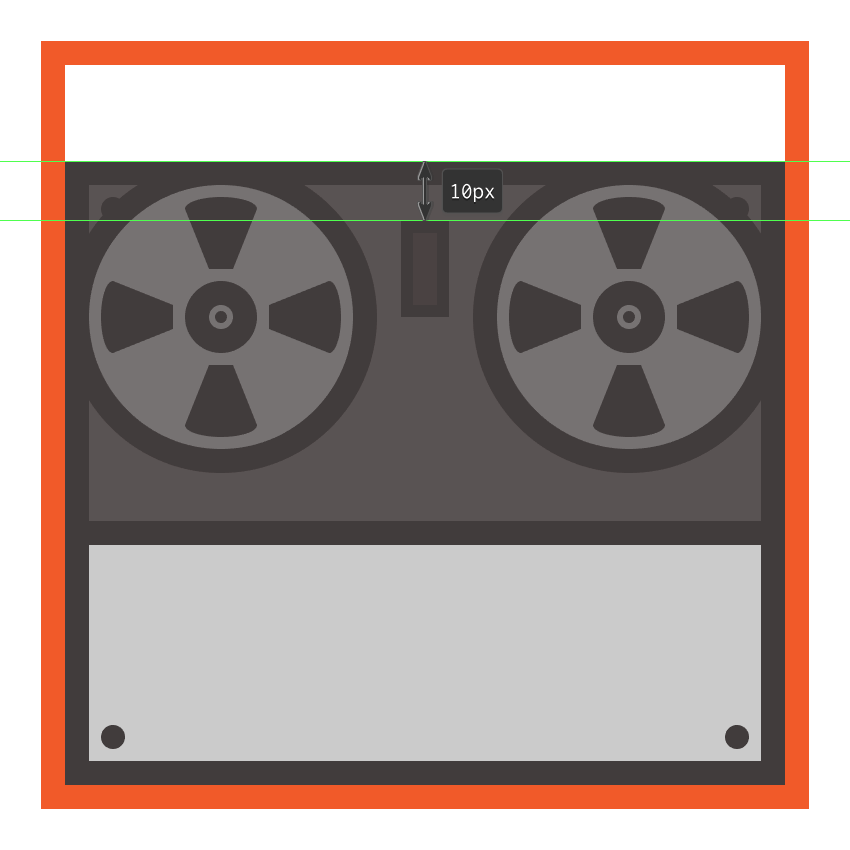

Start working on the slider that goes between the two reels by creating a 4 x 12 px rectangle (#494040) with a 4 px thick outline (#3F3939), which we will position in the center of the device, 10 px from its outline’s top edge.

creating and positioning the main shapes for the tape recorders top slider

Step 14

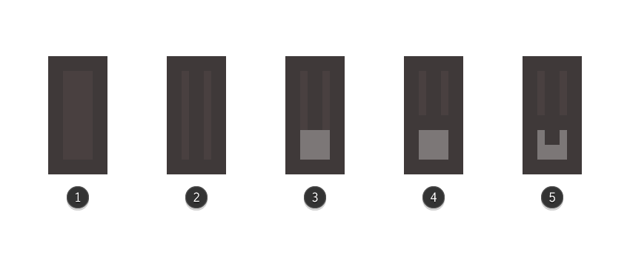

Start adding details to the slider (1) by creating and positioning a 2 x 12 px rectangle (#3F3939) in its center (2), and then adding a 4 x 4 px square (#7C7777) on its bottom edge (3). Turn the square into a button by adding a 4 x 2 px outline to its top edge (4), and a smaller 2 x 2 px rectangle (#3F3939) right under it (5).

Once you’re done, select and group all the slider’s elements together using the Control-G keyboard shortcut.

adding details to the tape recorders top slider

Step 15

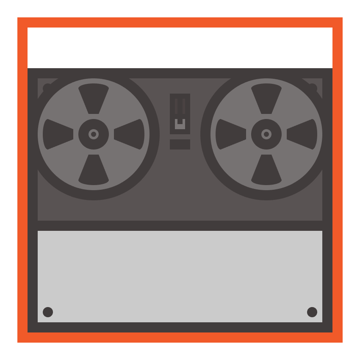

Add an 8 x 4 px rectangle (#3F3939) underneath the slider that we’ve just created, positioning it 2 px from it and grouping them together afterwards (Control-G).

adding the little decal from underneath the tape recorders main slider

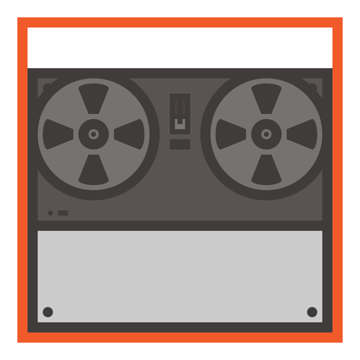

Step 16

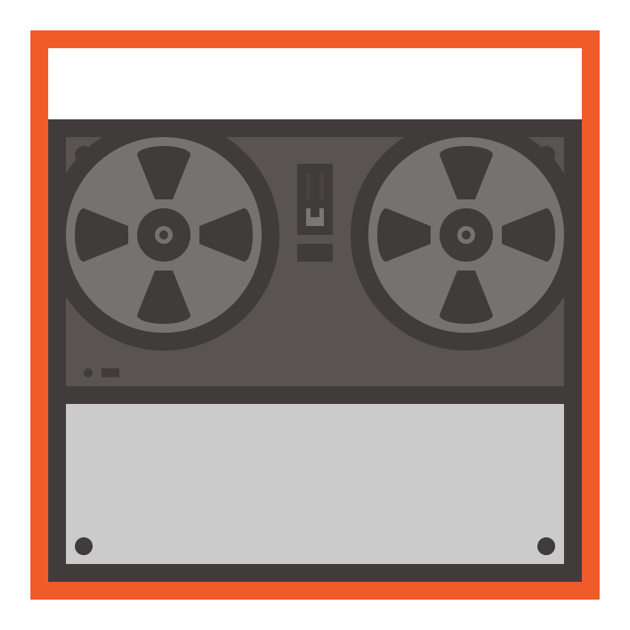

Add a small 2 x 2 px circle (#3F3939) followed by a 4 x 2 px rectangle (#3F3939) positioned 2 px from it, and then group (Control-G) and position the two over in the darker section’s lower left corner, leaving a 4 px gap on their left side and a smaller 2 px one on their bottom side.

adding the little decals from underneath the tape recorders left reel wheel

Step 17

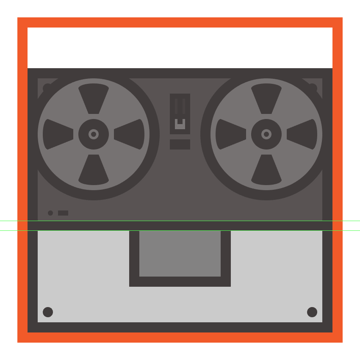

Start working on the case holding the reeling mechanism by creating a 32 x 18 px rectangle (#848383) with a 4 px outline (#3F3939), which we will position in the center, aligning it to the horizontal outline’s top edge.

creating and positioning the main shapes for the tape recorders mechanism case

Step 18

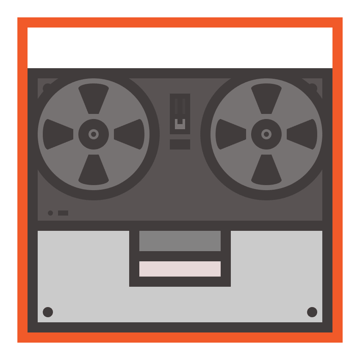

Add the lower section of the case, by creating a 32 x 6 px rectangle (#E8D9D9) followed by a 32 x 4 px one (#3F3939) above it.

creating and positioning the main shapes for the mechanism cases lower section

Step 19

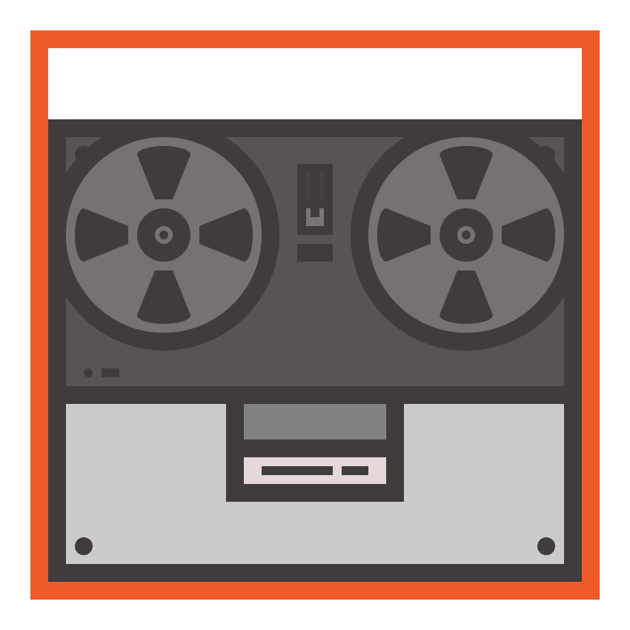

Use the Rectangle Tool (M) to add the little dummy text, by creating a 16 x 2 px shape (#3F3939) followed by a smaller 6 x 2 px one at a distance of 2 px from it. Group the two and then position them in the center of the light grey shape.

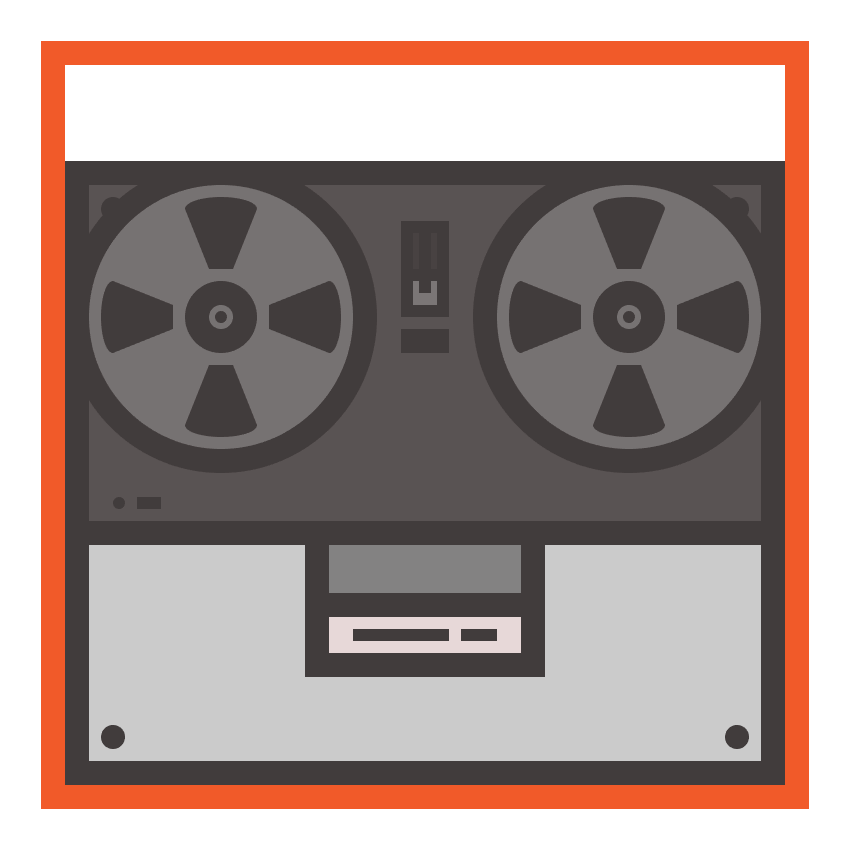

adding the dummy text lines to the lower section of the tape recorders mechanism case

Step 20

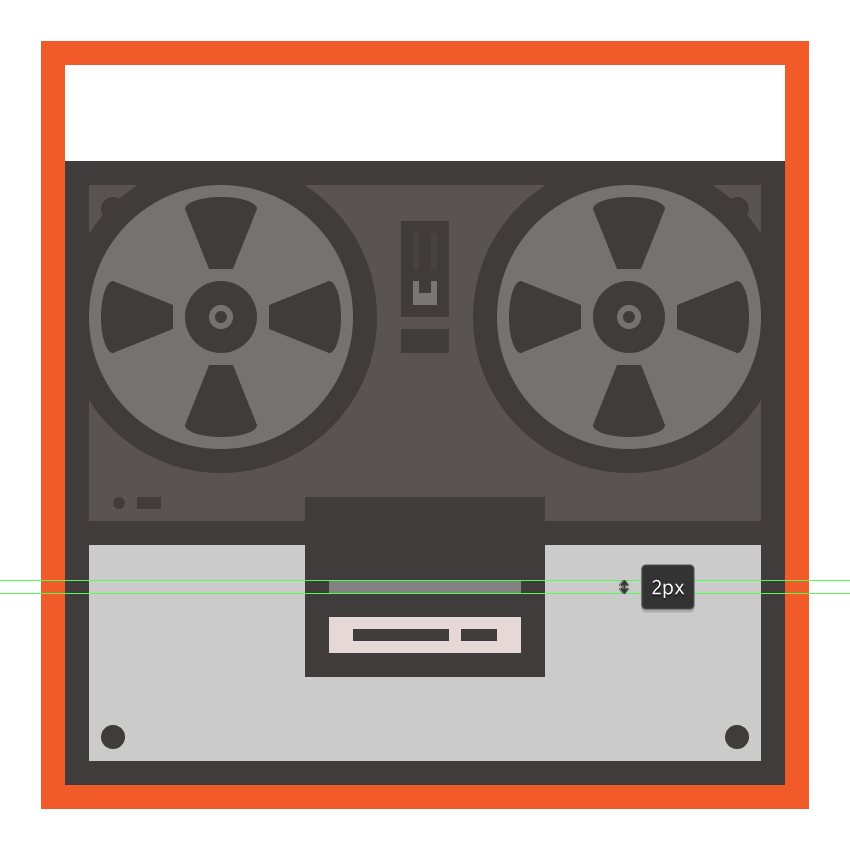

Add the upper section of the case by creating a 40 x 14 px rectangle, which we will color using #3F3939 and then position over the shapes that we’ve just created, leaving a 2 px gap between it and the horizontal outline.

creating and positioning the upper section of the tape recorders mechanism case

Step 21

Adjust the shape that we’ve just created by adding a new Anchor Point in the center of its bottom edge, and then selecting and pushing its bottom-right one towards the top by 6 px (right click > Transform > Move > Vertical > - 6 px).

adjusting the tape recorders mechanism case

Step 22

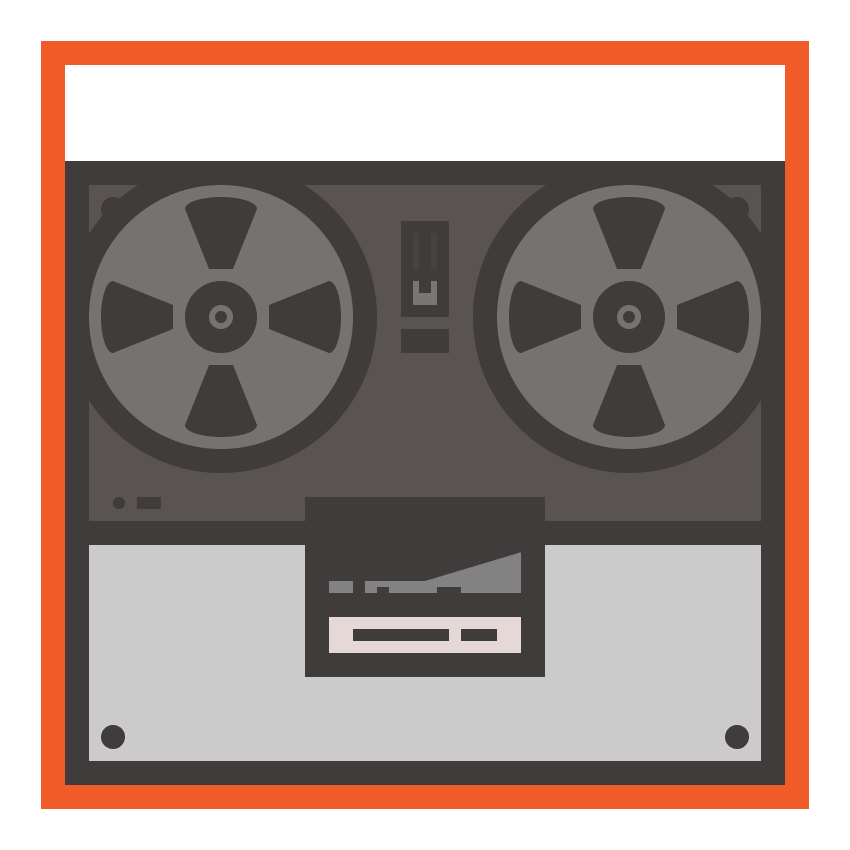

Use the Rectangle Tool (M) to add a couple of details above the horizontal outline, by drawing a 2 x 2 px rectangle (#3F3939) followed by a smaller 2 x 1 px one (#3F3939) positioned 2 px from it, and another 4 x 1 px one (#3F3939) at an 8 px distance from the second one.

adding details to the tape recorders mechanism case

Step 23

Finish off the mechanism case by adding the little reel wheel, which we will create using an 8 x 8 px circle (#3F3939) on top of which we’ll add a 4 x 4 px one (#595252) and a smaller 2 x 2 px one (#3F3939).

Group the wheel’s composing shapes together (Control-G), making sure to position them underneath the lower section of the case, and then group its shapes as well.

adding the reel wheel to the tape recorders mechanism

Step 24

Using the Pen Tool (P), draw two diagonal rectangles that start from the reeling case and end in the lower section of the wheels, coloring them using #3F3939. Once you’re done, select them and the case and group them using the Control-G keyboard shortcut.

adding the tape to the recorder using the pen tool

Step 25

Start working on the level indicator, by creating a 10 x 6 px rectangle (#595252) to which we will add a thinner 2 px outline (#595252) using the Offset Path method, and then position the two shapes on the lower grey section’s left side, leaving a 4 px gap around them.

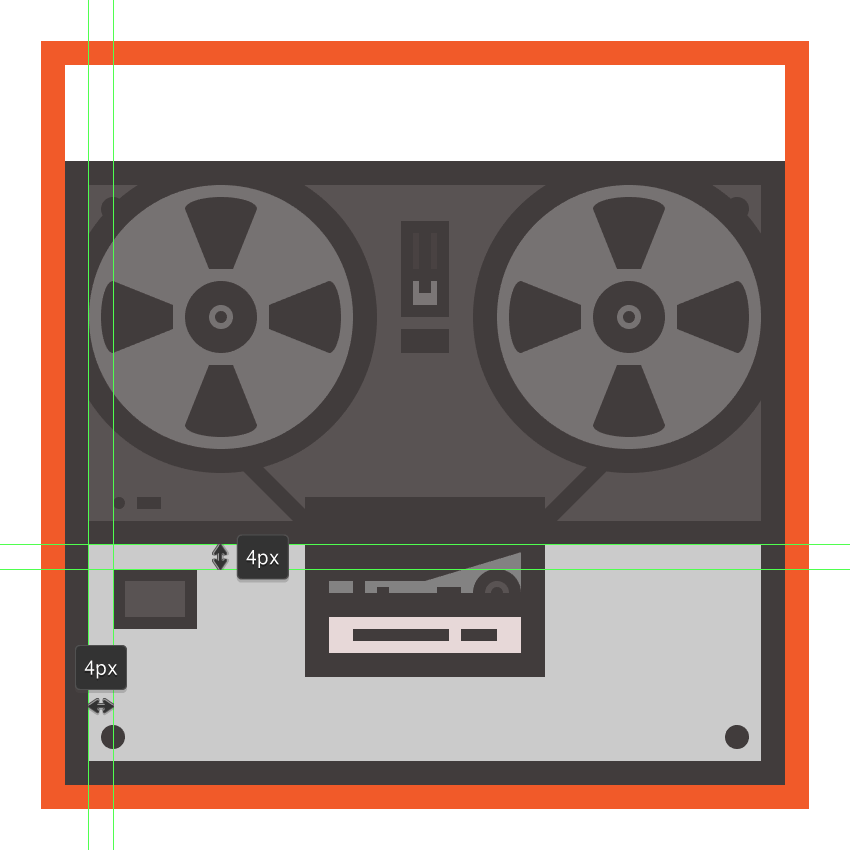

creating and positioning the main shapes for the tape recorders level indicator

Step 26

Start adding details to the indicator (1), by creating and positioning a 10 x 3 px rectangle (#868282) in its top half (2). Then, add two pairs of 1 x 2 px rectangles (#3F3939) positioned 1 px from one another, leaving a 2 px gap between them (3), and a 2 px wide / 4 px tall pointy indicator (#3F3939) using the Pen Tool (P) which we will position in the middle (4).

Once you’re done, select all the indicator’s composing shapes and group them together (Control-G).

adding details to the tape recorders level indicator

Step 27

Add the little record button that sits next to the indicator by creating a 2 x 4 px rectangle (#BA4545) with a 2 px outline (#3F3939), which we will group (Control-G) and then position on its right side at a distance of 7 px.

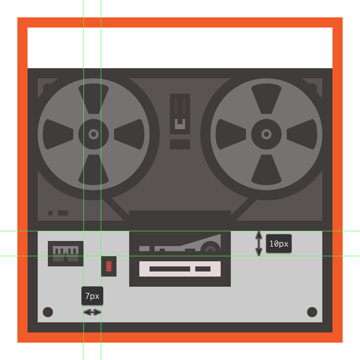

creating and positioning the red button onto the tape recorders body

Step 28

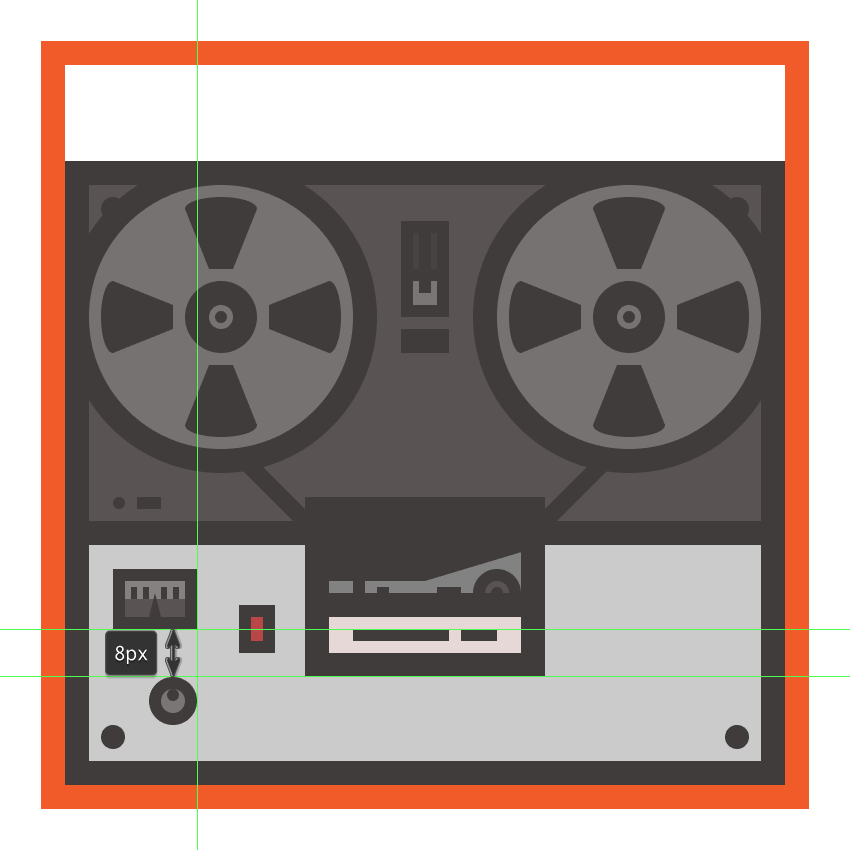

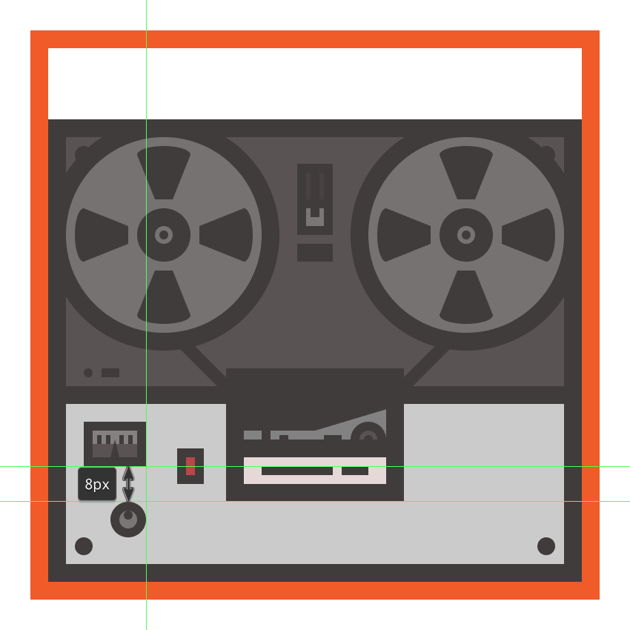

Create the first knob using a 4 x 4 px circle (#7C7777) with a 2 px outline (#3F3939), on top of which we will add a smaller 2 x 2 px circle (#3F3939) which we will align to its top edge. Once you’re done, select and group all three shapes together, positioning them underneath the level indicator, at a distance of 8 px.

creating and positioning the first knob onto the tape recorders body

Step 29

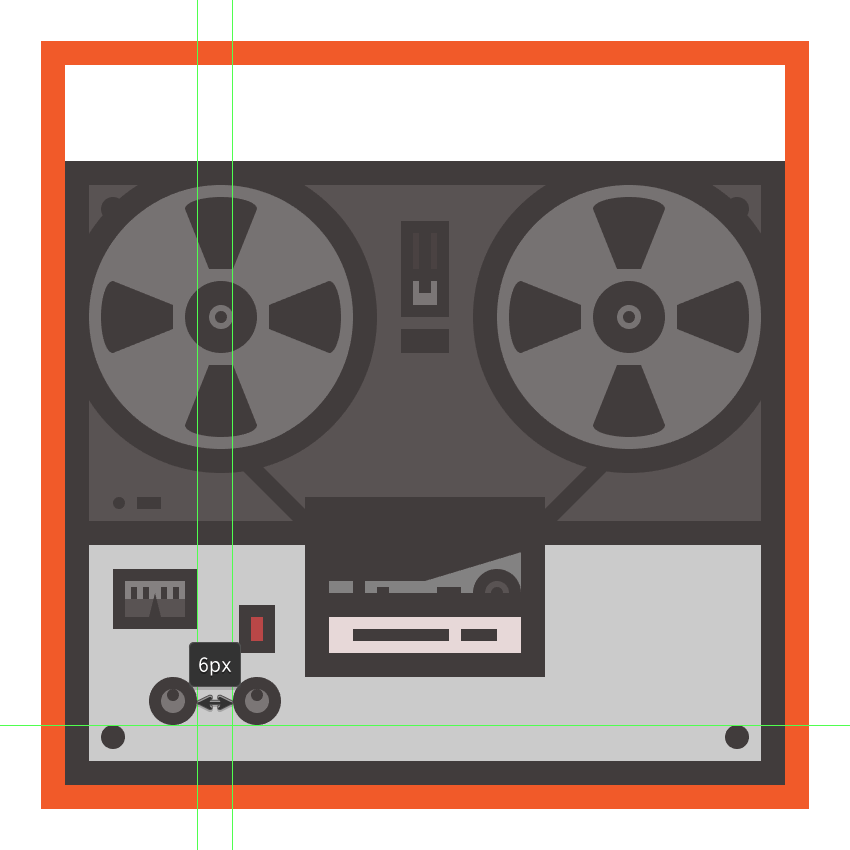

Add the second knob by using a copy of the one that we’ve just created (Control-C > Control-F), and positioning it on the right side, at a distance of 6 px from the original.

creating and positioning the second knob onto the tape recorders body

Step 30

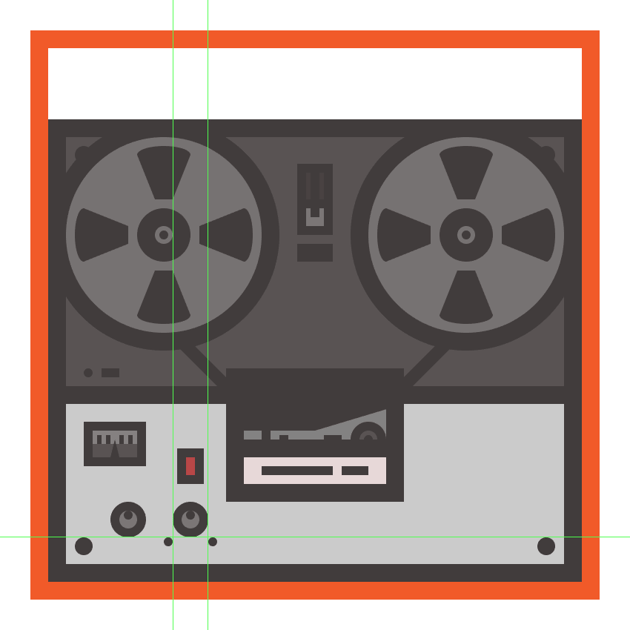

Add a 2 x 2 px circle (#3F3939) to each side of the second knob, positioning them right under its bottom edge, and then select and group both them and the knob together using the Control-G keyboard shortcut.

adding the little gain indicators to the tape recorders second knob

Step 31

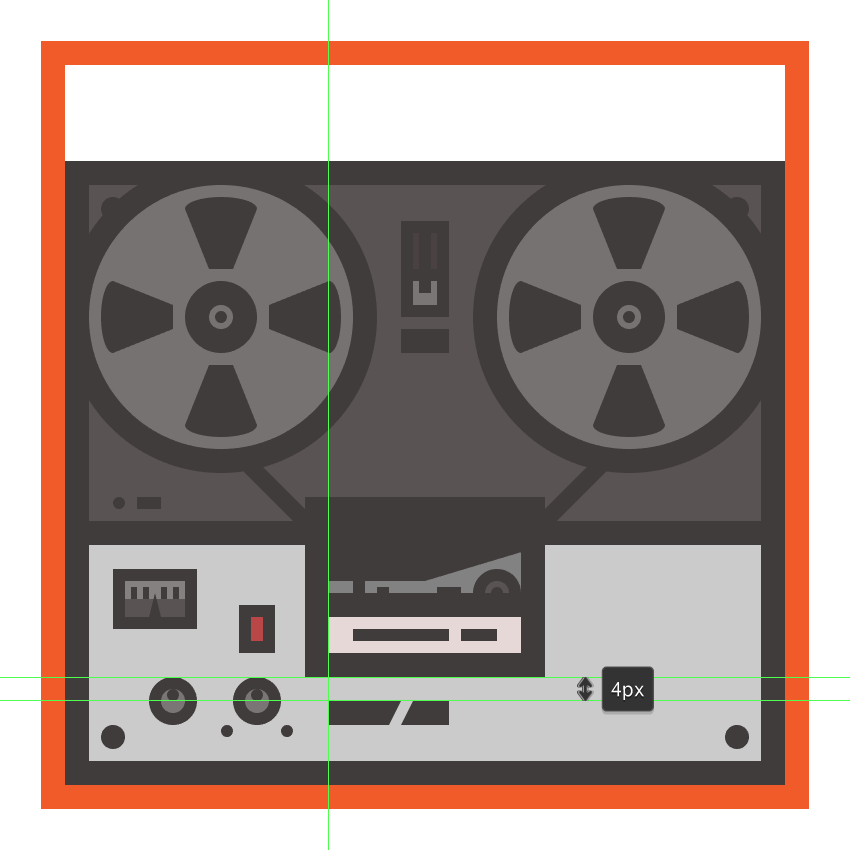

Add the lower dummy text by creating a 12 x 4 px rectangle (#3F3939), followed by a smaller 6 x 4 px one (#3F3939) positioned 2 px from it, and then adjust the two by selecting the inner bottom Anchor Points with the Direct Selection Tool (A) and pushing them towards the left side by 2 px.

Once you’re done, group (Control-G) the resulting shapes, and position them 4 px from the bottom edge of the mechanism’s case.

creating and positioning the second dummy text onto the tape recorders body

Step 32

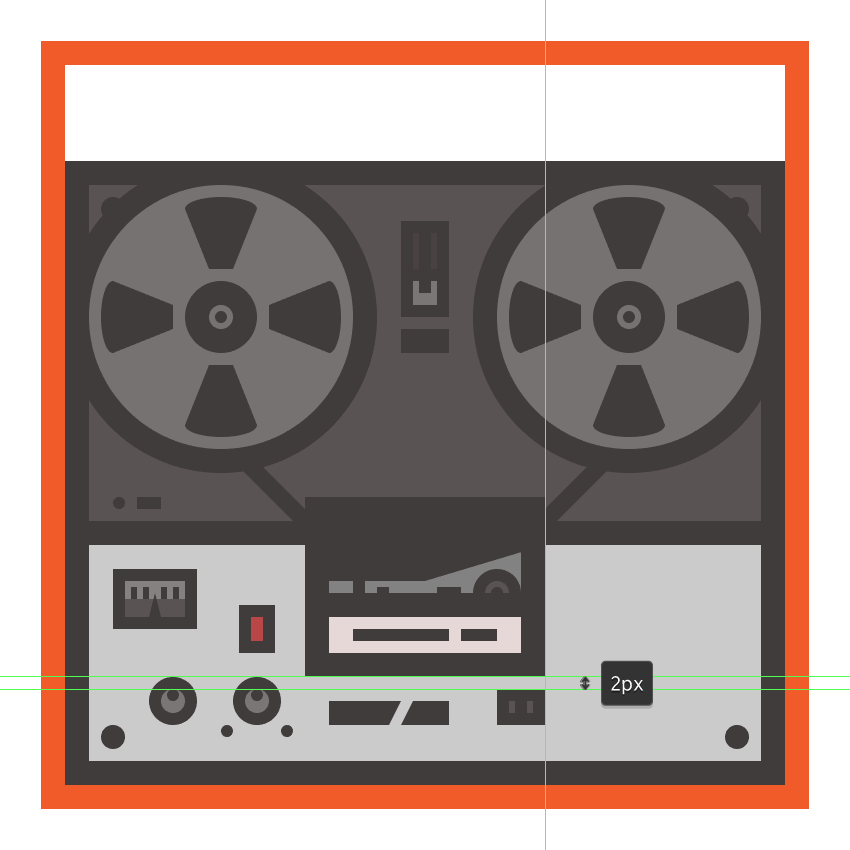

Create the sound monitor button using a 4 x 2 px rectangle (#595252) with a 2 px outline (#3F3939) and a 2 x 2 px divider (#3F3939) in the center, which we will group (Control-G) and position at a distance of 2 px from the case’s bottom-right corner.

creating and positioning the monitor button onto the tape recorders body

Step 33

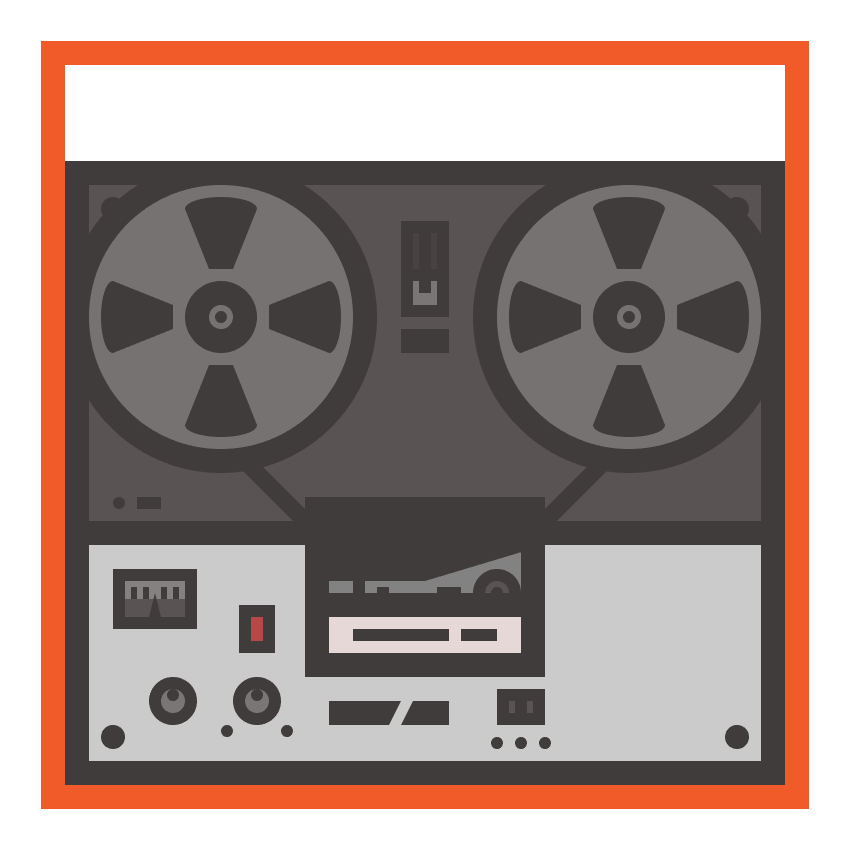

Add three 2 x 2 px circles (#3F3939) positioned 2 px from one another, which we will group (Control-G) and then position underneath the button that we’ve just created, leaving a  2 px gap between them.

adding the little button state indicators to the tape recorders monitor button

Step 34

Grab the Rectangle Tool (M) and create the main control switch using a 4 x 20 px shape (#595252) (1) to which we will add two side Anchor Points at 12 px from its top edge (2), and another pair 2 px from its bottom one (2).

With the Anchors in place, adjust the shape by pushing the bottom ones towards the inside by 1 px (3), setting the Corner Radius of the bottom corners to 1 px from within the Transform Panel (3). Finish the shape by giving it a 2 px outline (#3F3939) (4) and a 2 x 4 px rectangle to its upper section (5).

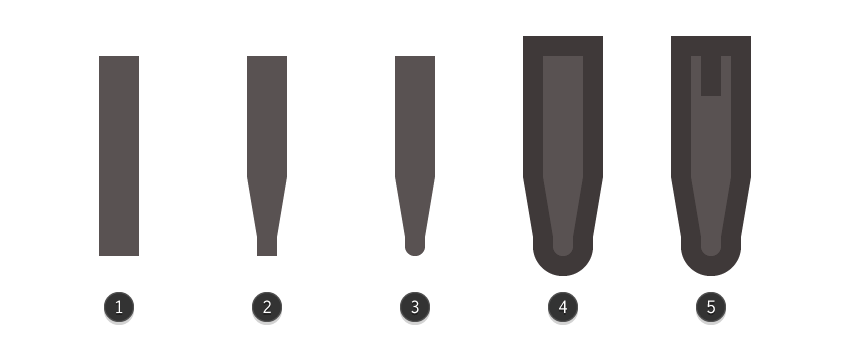

adding details to the tape recorders main control switch

Step 35

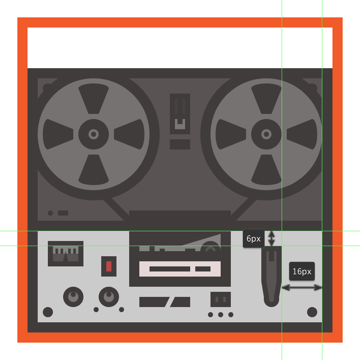

Group (Control-G) and position the switch that we’ve just created over on the recorder’s right side, leaving a 16 px gap on its right side and a 6 px one on the top.

creating and positioning the main control switch onto the tape recorders body

Step 36

Add a couple of indicators to the switch using a 2 x 2 px circle (#3F3939) for the top and right one, and a 4 x 2 px rounded rectangle (#3F3939) with a 1 px Corner Radius for the side ones.

Once you’re done, select and group (Control-G) them together with the switch, and then do the same for all of the recorder’s shapes as well.

adding the little state indicators to the tape recorders main control switch

Step 37

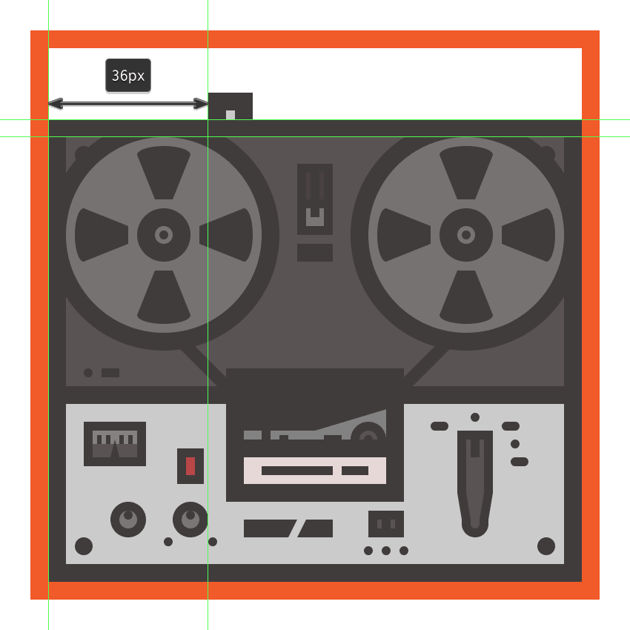

Grab the Rectangle Tool (M) and start working on the handle by creating a 2 x 2 px square (#CCCCCC) with a 4 px outline (#3F3939) which we will group (Control-G) and position on top of our recorder, at a distance of 36 px from its left side.

creating and positioning the left lower section of the tape recorders handle

Step 38

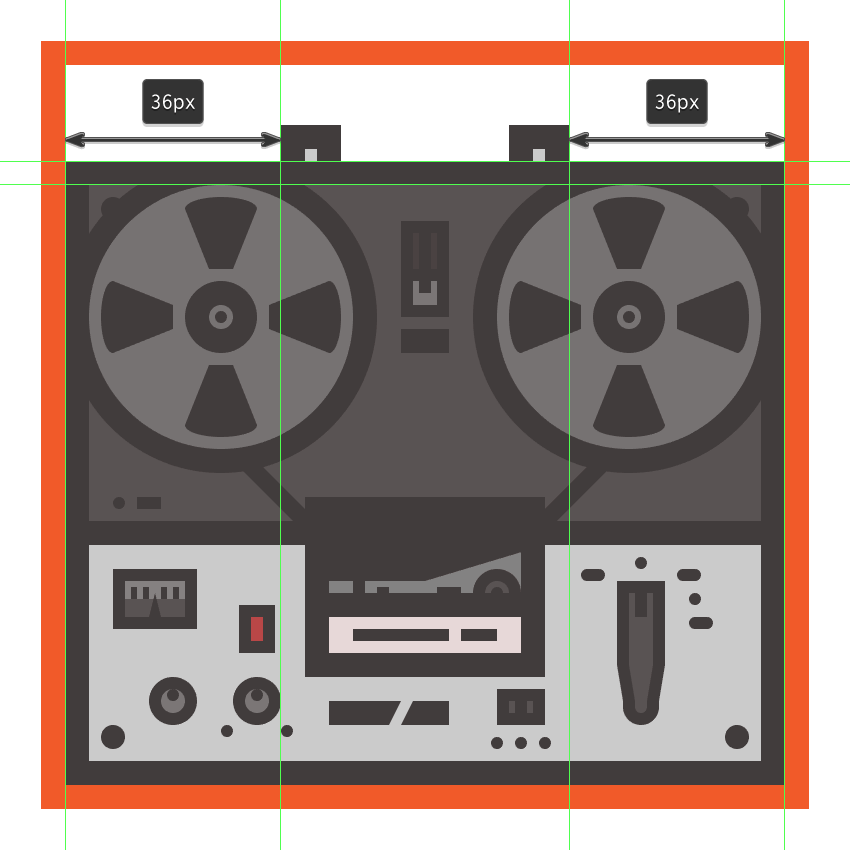

Create a copy (Control-C > Control-F) of the handle’s lower section that we’ve just created, and then position it on the right side, maintaining the same 36 px distance.

creating and positioning the lower right section of the tape recorders handle

Step 39

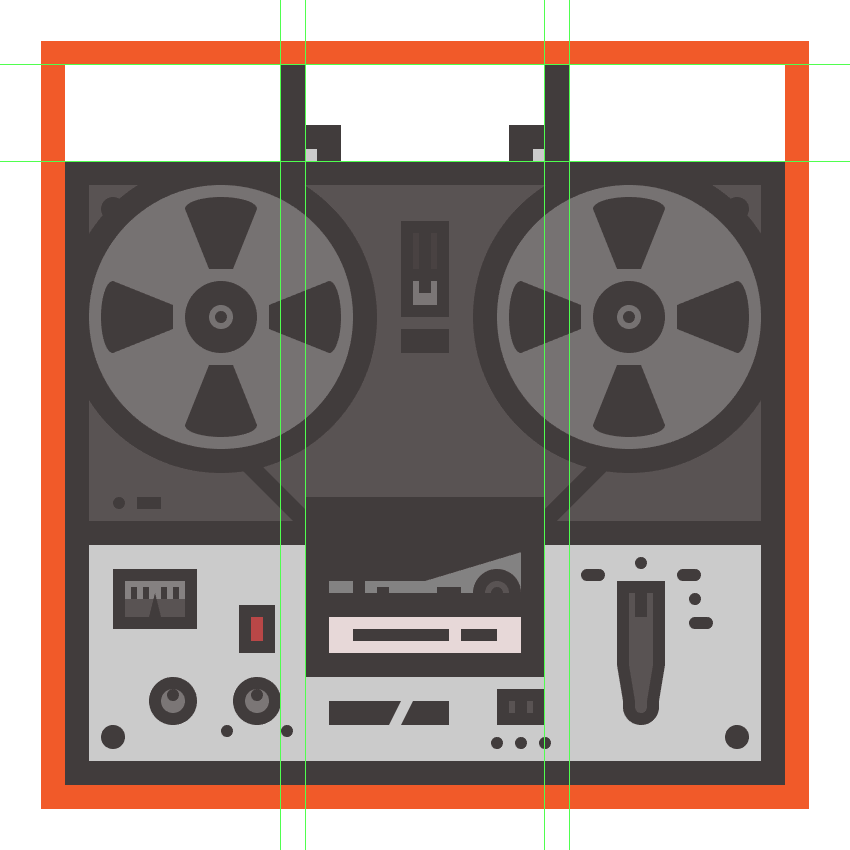

Add the side sections of the handle using two 4 x 16 px rectangles (#3F3939) which we will position towards the outer sides of the lower sections that we’ve just created.

creating and positioning the side sections of the tape recorders handle

Step 40

Finish off the handle and with it the icon itself, by adding a 40 x 6 px rectangle (#3F3939) between the two side sections that we’ve created in the previous step, grouping (Control-G) both them and the remaining composing shapes together afterwards.

tape recorder icon finished

6. How to Create the Necronomicon

Assuming you’ve already locked the previous layer and moved on to the next one, zoom in on the second reference grid, and let’s start working on the gruesome book that Sam Raimi used to give birth to his masterpiece.

Step 1

Grab the Rectangle Tool (M) and create the main shape of the icon using a 84 x 112 px rectangle, which we will color using #B57A5D, give a 4 px outline (#3F3939) and then position in the center of the active drawing area.

creating and positioning the main shapes for the necronomicons body

Step 2

Add a 4 x 112 px rectangle on the left side of the brown book cover, and color it using #A05C3F.

creating and positioning the books left section

Step 3

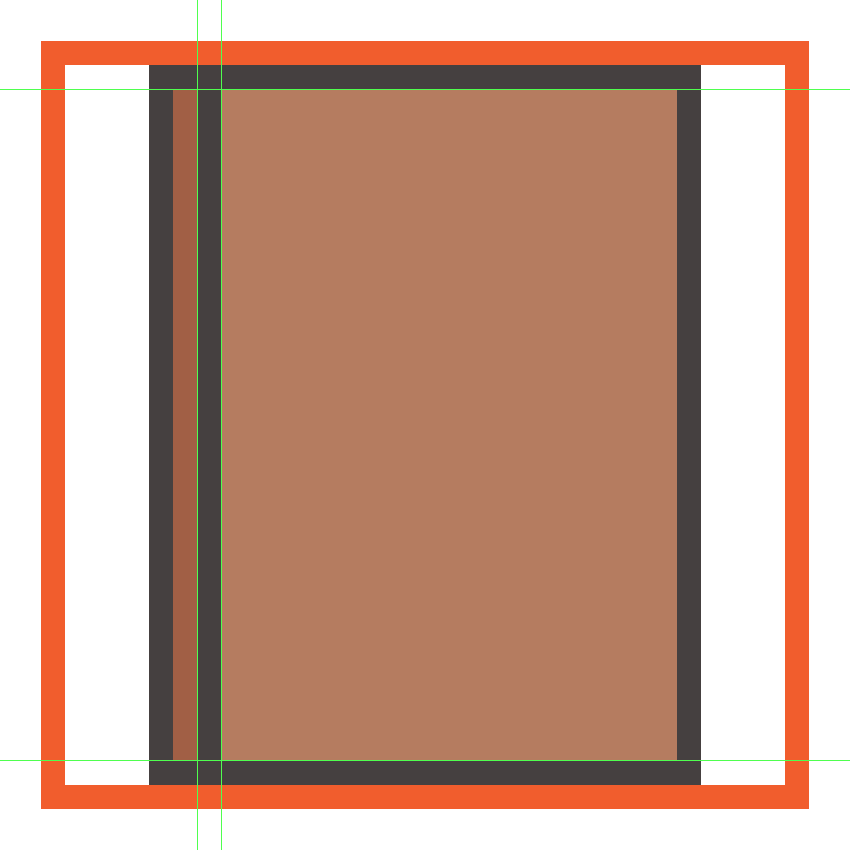

Using the Rectangle Tool (M), add a 4 x 112 px vertical outline (#3F3939) to the right side of the shape that we’ve just created.

adding the vertical outline to the books left section

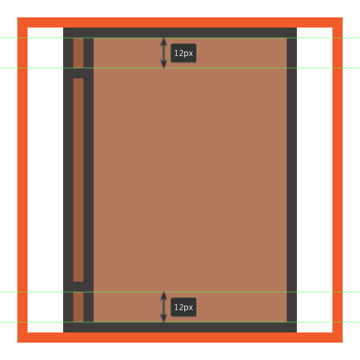

Step 4

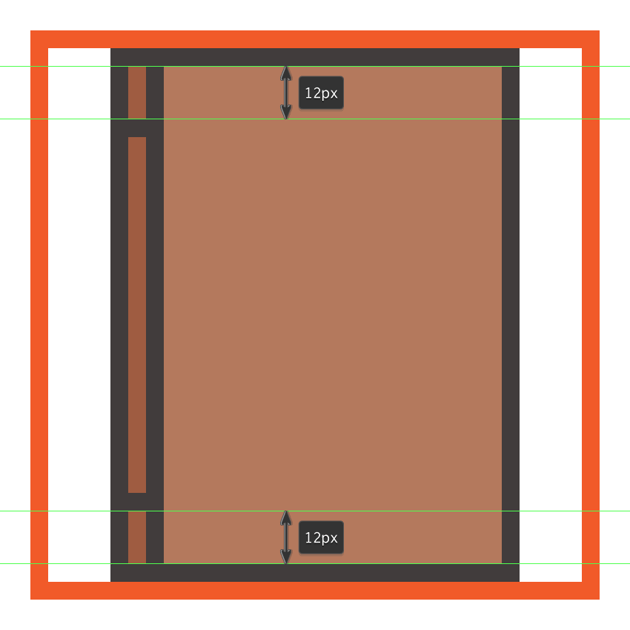

Add two 4 x 4 px squares to the section that we’ve just created, positioning each one of them at 12 px from the book’s outer outline.

Once you’re done, select all the shapes that we’ve created so far and group them using the Control-G keyboard shortcut.

creating and positioning the horizontal divider lines onto the books left section

Step 5

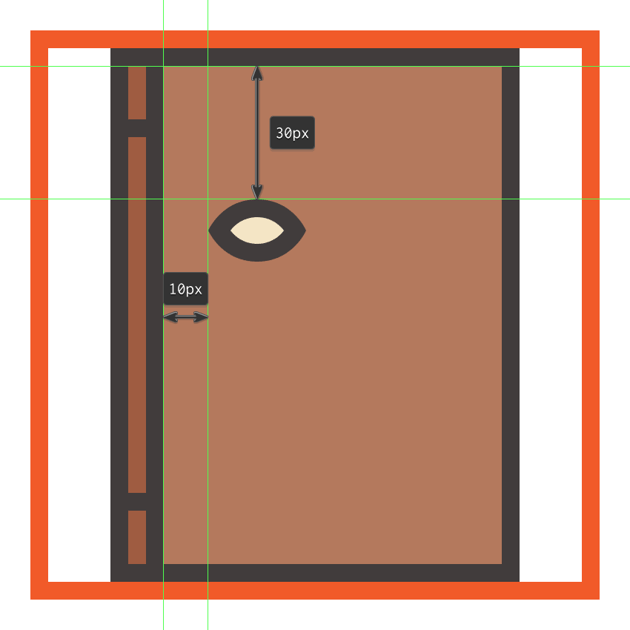

Start working on the Necronomicon’s left eye by creating a 12 x 6 px ellipse (#F4E6C6), which we will adjust by pinching its left and right Anchor Points using the Anchor Point Tool to make them pointy. Give the resulting shape a 4 px outline (#3F3939) and then group (Control-G) and position them on the book’s left side.

creating and positioning the main shapes for the necronomicons left eye

Step 6

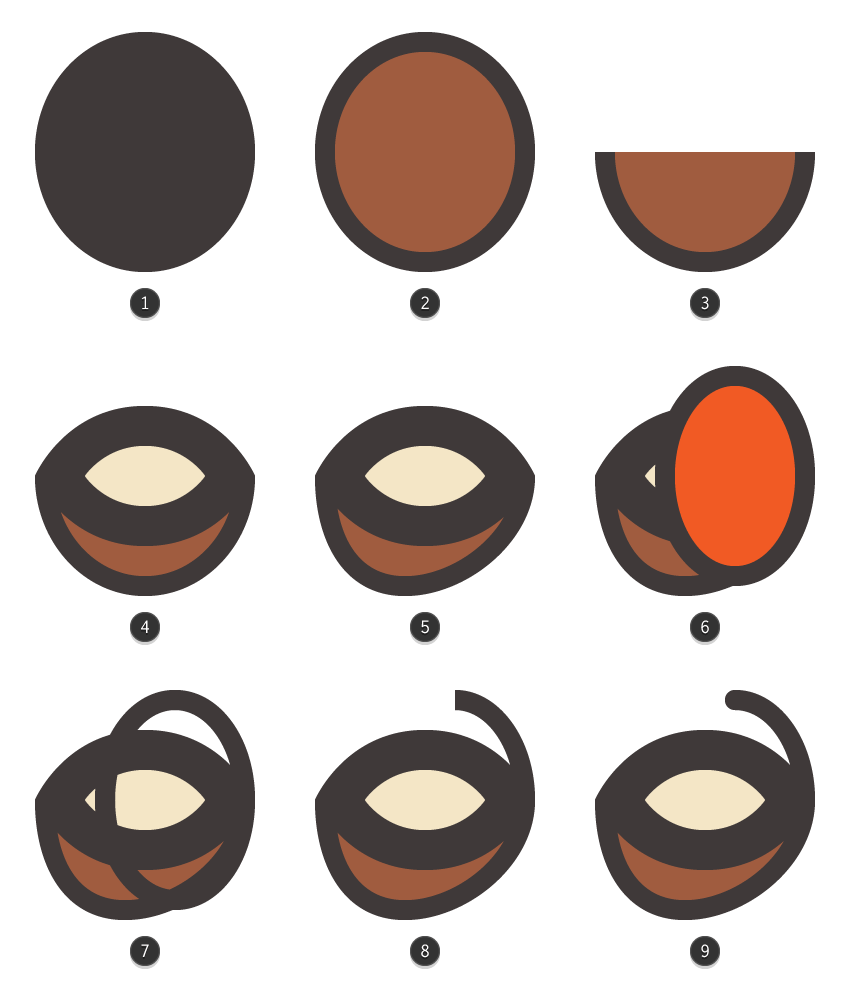

Create the section from underneath the eye, by drawing a 22 x 24 px ellipse (#A05C3F) (1) and then adding a smaller 18 x 20 px one (#A05C3F) on top of it (2). Adjust both shapes by removing their upper half (3), and then group (Control-G) and position them underneath the eye (right click > Arrange > Send Backward) (4). Use the Direct Selection Tool (A) to select and move their bottom Anchor Points towards the left side by 2 px (5).

Create the upper arched line section, by drawing a 16 x 22 px ellipse (#3F3939) (6) which we will align to the bottom right section of the eye, cutting out a smaller 12 x 18 px one from it (7) (highlighted with orange). Adjust the resulting shape by removing its bottom and left halves (8) and then add a small 2 x 2 px circle (#3F3939) to its top end, grouping (Control-G) all the shapes together afterwards.

adding details to the necronomicons left eye

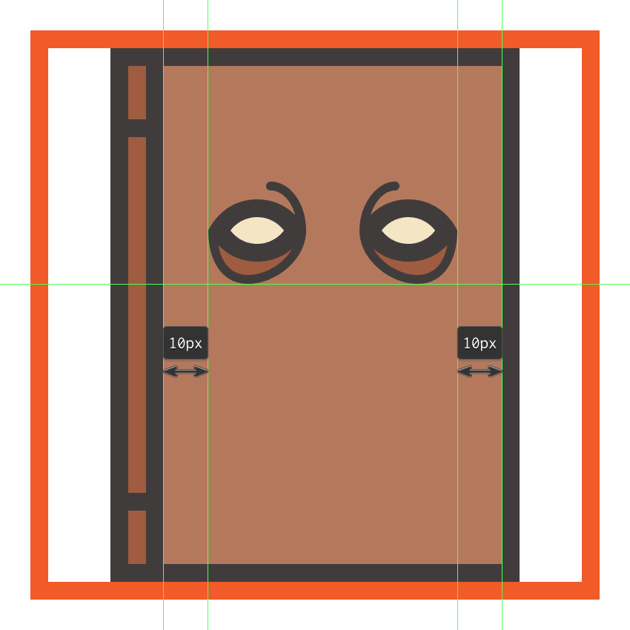

Step 7

Grab a copy (Control-C > Control-G) of the eye that we’ve just finished adding details to, and position it on the right side of the book, flipping it vertically (right click > Transform > Reflect > Vertical).

creating and positioning the necronomicons right eye

Step 8

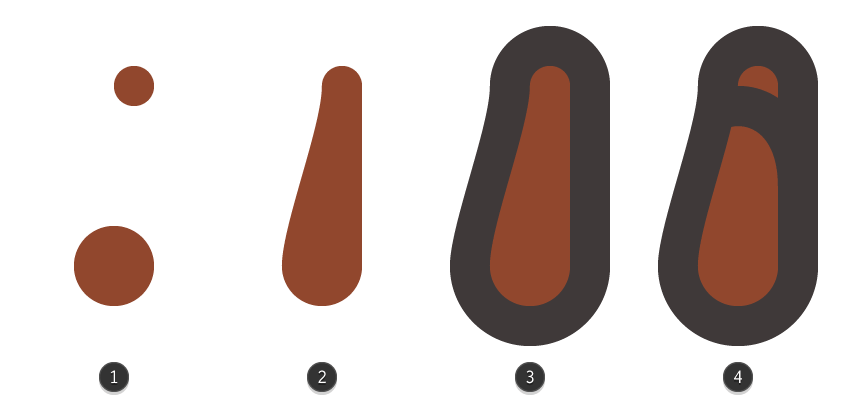

Start working on the nose’s left section, by creating a 2 x 2 px circle (#91472D) (1) followed by a slightly larger 4 x 4 px one (#91472D) positioned under it at a distance of 6 px (1). Use the Direct Selection Tool (A) to select and remove (Delete) the inner-facing Anchor Points, uniting the remaining paths using the Control-J keyboard shortcut (2).

Give the resulting shape a 2 px thick outline (#3F3939) (3) and a small arched line segment towards the top (4), selecting and grouping (Control-G) all the shapes together afterwards.

creating the necronomicons left nose section

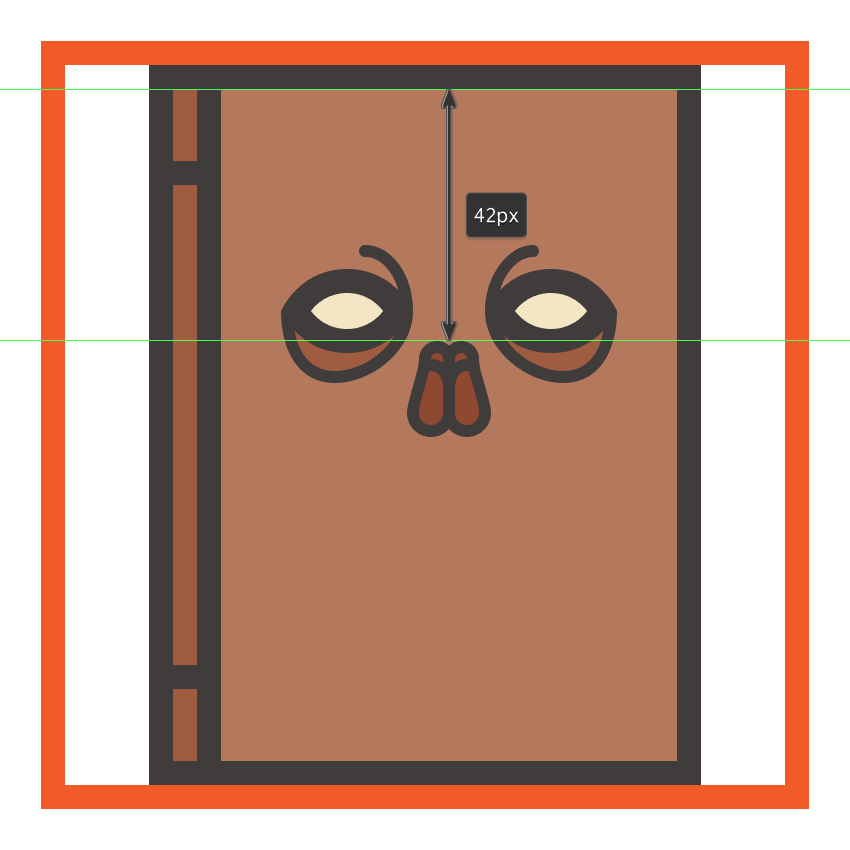

Step 9

Position the nose section onto the Necronomicon, next to the left eye, and then create the right half using a reflected (right click > Transform > Reflect > Vertical) copy (Control-C > Control-F) of it, grouping the two afterwards (Control-G).

creating and positioning the necronomicons nose

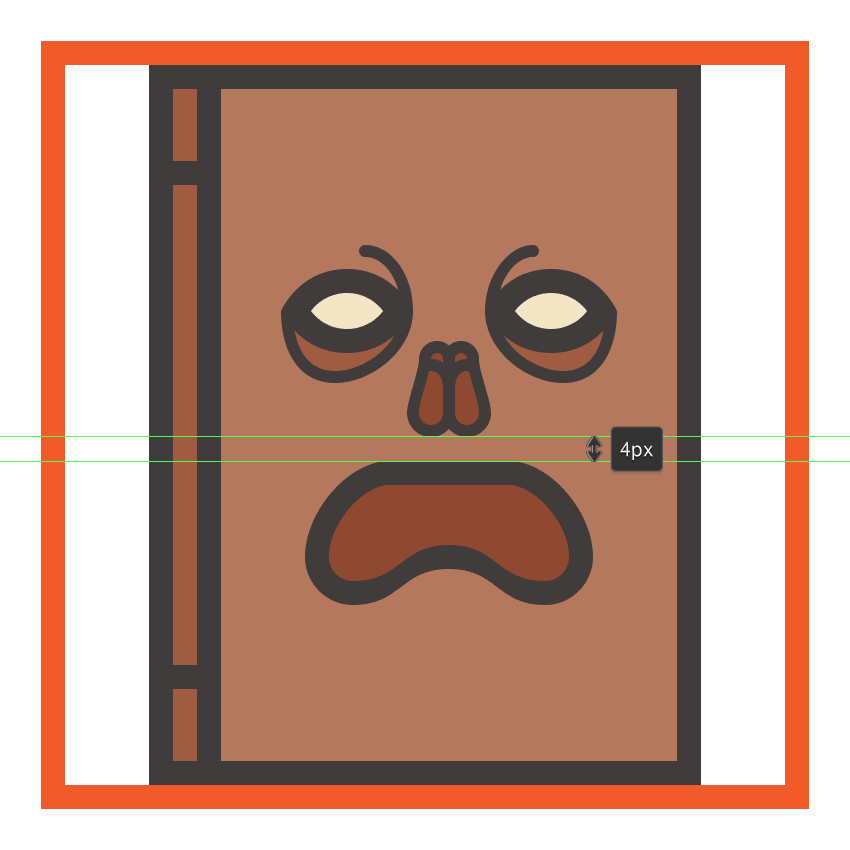

Step 10

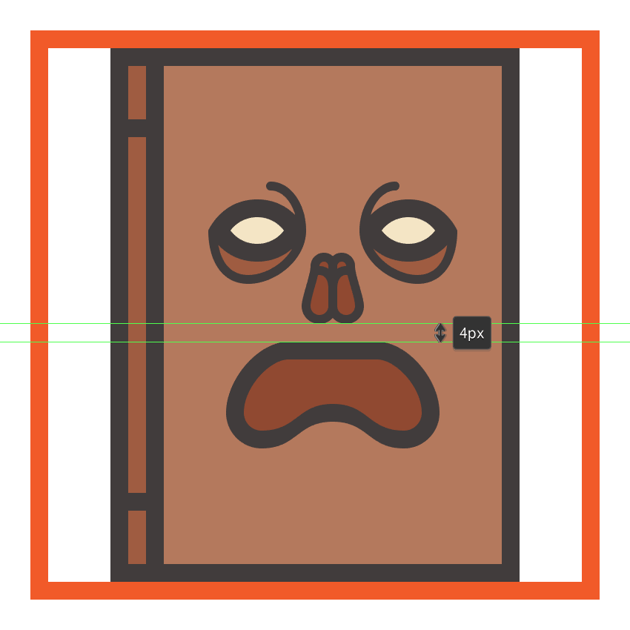

Grab the Pen Tool (P) and use it to draw the main shape for the mouth, setting your fill color to #91472D. Take your time, and once you’re done give it the usual 4 px thick outline (#3F3939) positioning the two underneath the nose, at a distance of 4 px from it.

creating and positioning the main shapes for the necronomicons mouth

Step 11

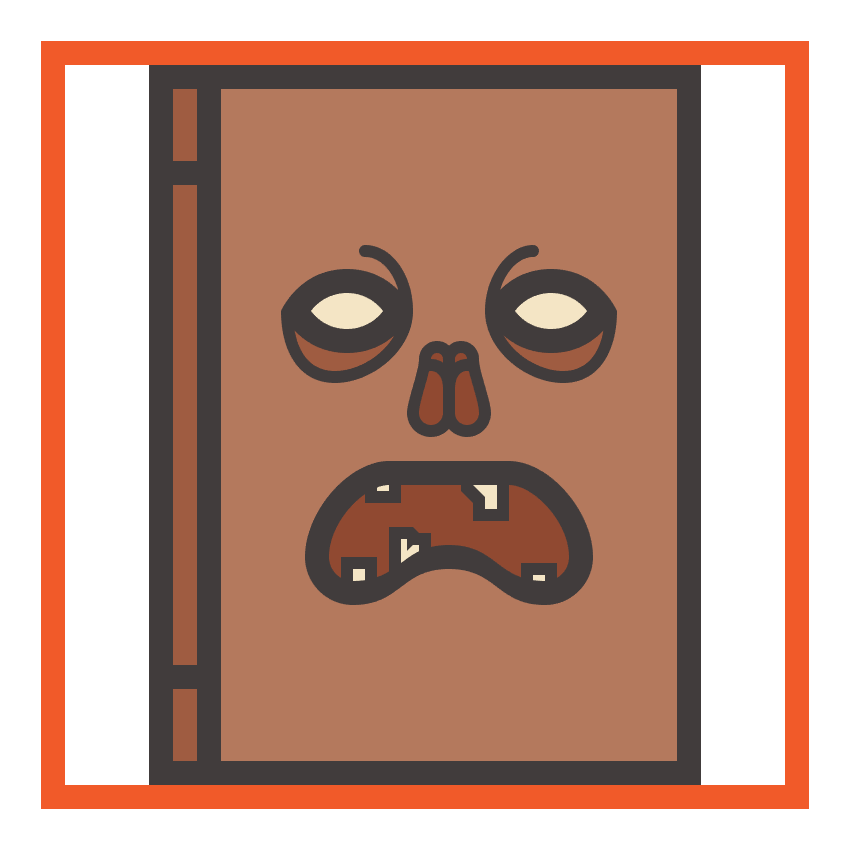

Using the Rectangle Tool (M), add a couple of 2 px wide shapes (#F4E6C6), which we will turn into teeth by giving them a 2 px outline (#3F3939) and then positioning them around the mouth. Adjust some of the teeth so that they end up looking crooked, since we are creating a demonic figure after all.

Once you’re done, select and group (Control-G) all the teeth together, masking them using a copy of the mouth’s shape (right click > Make Clipping Mask).

adding the crooked teeth to the necronomicons mouth

Step 12

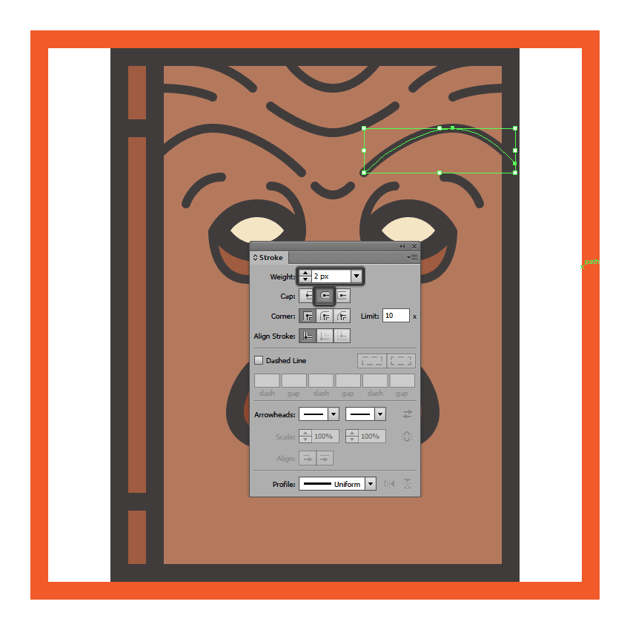

Finish off the icon by grabbing the Pen Tool (P) and using it to add the little stretch lines to the book’s “skin”. Use a 2 px thick Stroke (#3F3939) with the Cap set to Round, and gradually draw the paths using the reference image as a guide.

adding the stretch lines to the necronomicons skin

Step 13

Once you’re done, group all the stretch lines together (Control-G) and then do the same for the icon itself.

necronomicon icon finished

7. How to Create the Chainsaw

We are now down to our third and last icon of the bunch, which is probably one of the most insane contraptions ever built to save humankind.

I’m assuming that by now you already know the drill, so let’s get started!

Step 1

Select the Rectangle Tool (M) and create the chainsaw’s metal cuff, using a 14 x 4 px shape which we will color using #CCCCCC, give a 4 px thick outline (#3F3939), and then position on the bottom edge of the active drawing area, at a distance of 40 px from its left side.

creating and positioning the main shapes for the chainsaws metal cuff

Step 2

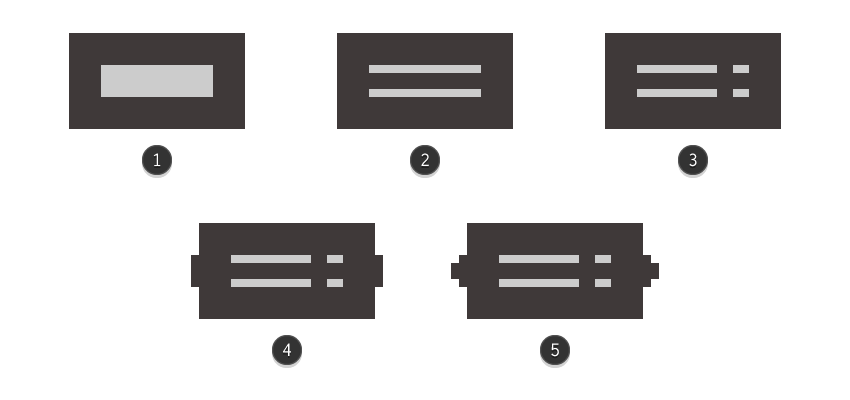

Start adding details to the cuff (1), by creating and positioning a 14 x 2 px rectangle (#3F3939) in the center of the grey shape (2), and then adding a 2 x 4 px one (#3F39392 px from its right edge (3). Add the little side bolts using a 1 x 4 px rectangle (#3F3939) (4) on top of which we’ll add a 2 x 2 px square (#3F3939) (5).

Once you’re done, select and group all the cuff’s composing shapes together using the Control-G keyboard shortcut.

adding details to the chainsaws cuff

Step 3

Create the chainsaw’s body using a 32 x 42 px rectangle (#D85144) (1) which we will adjust by first setting the Corner Radius of its top-right corner to 8 px (2) and its bottom ones to 2 px (2). Then, we’ll grab the Add Anchor Point Tool (+) and add two new anchors to its right side, one 12 px from its top, and another one 8 px from its bottom (3).

Select the three bottom anchors using the Direct Selection Tool (A) and push them towards the left by 8 px (3), adjusting the transition between the upper and bottom section of the body (4).

Once you’re done, give the resulting shape a 4 px outline (#3F3939) (5) and then group the two together using the Control-G keyboard shortcut.

creating the main shapes for the chainsaws body

Step 4

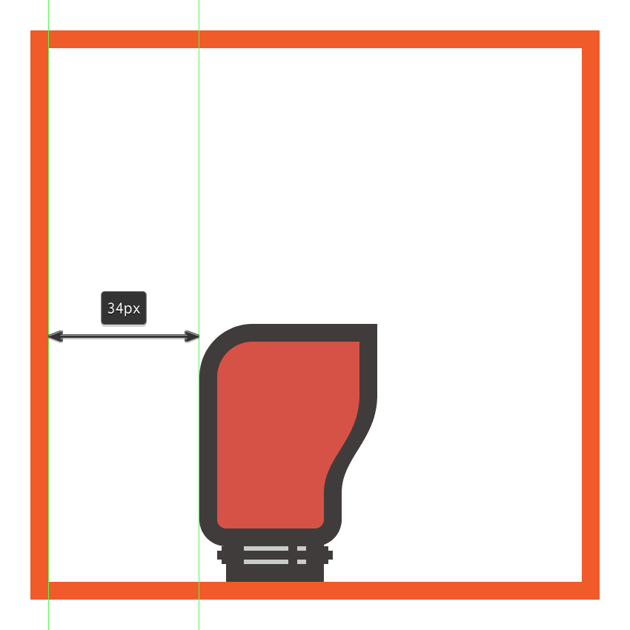

Position the chainsaw’s body onto the cuff, at a distance of 34 px from the active drawing area’s left edge.

positioning the chainsaws body onto the metal cuff

Step 5

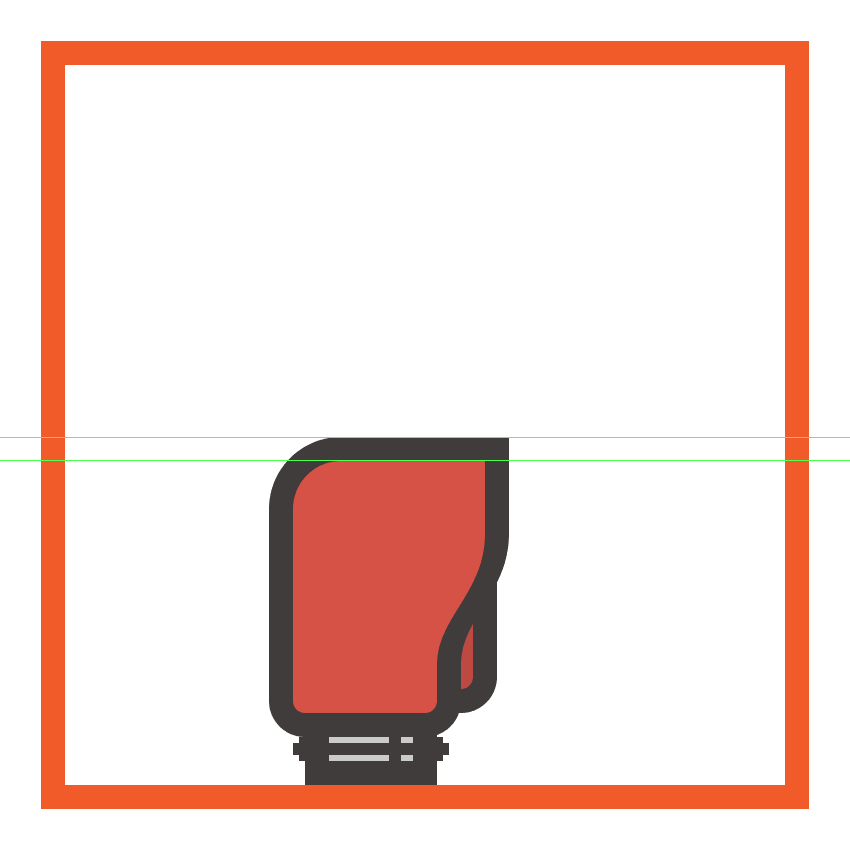

Add the body’s back section, by creating a 4 x 38 px rectangle (#BF4741), which we will adjust by setting the Corner Radius of its bottom-right corner to 2 px. Give the resulting shape a 4 px outline (#3F3939) and then group (Control-G) and position the two underneath the body’s right side (right click > Arrange > Send to Back), aligning them to the outline’s top edge.

adding the chainsaws back section

Step 6

Grab the Rounded Rectangle Tool and create a 36 x 2 px shape (#595252) with a 1 px Corner Radius, give it a 2 px outline (#3F3939) and then group (Control-G) and position the two 8 px from the large outline’s top edge.

creating and positioning the main shapes for the chainsaws grey handle

Step 7

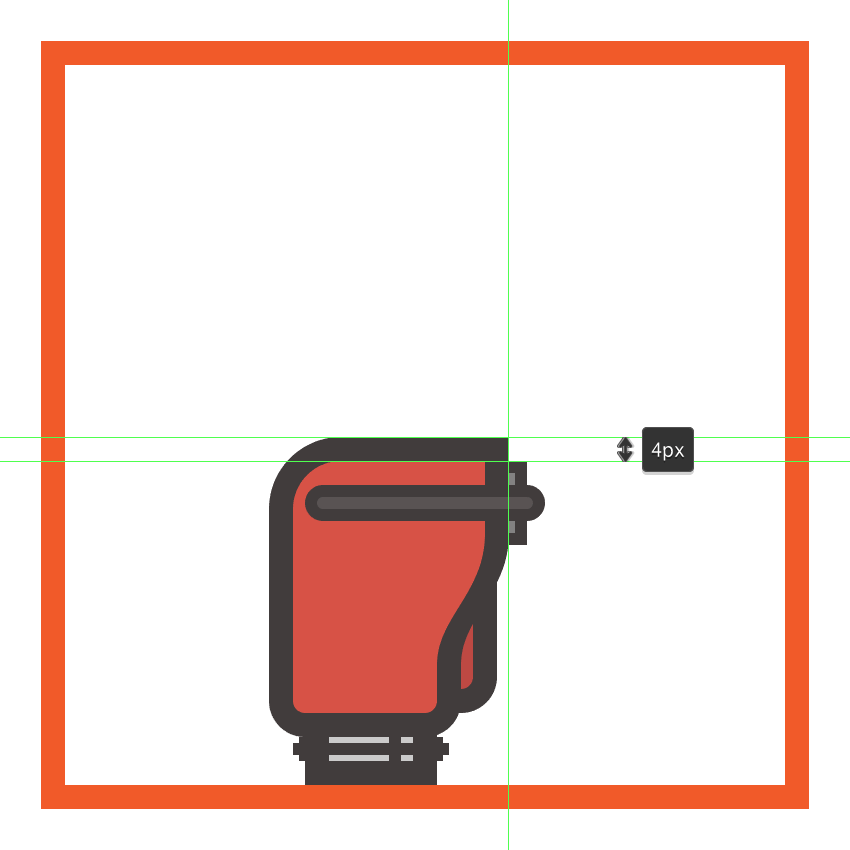

Next, create a 1 x 10 px rectangle (#848383) with a 2 px outline (#3F3939) which we will group (Control-G) and position on the body’s right side, underneath the grey handle (right click > Arrange > Send to Back), exactly 4 px from the outline’s top edge.

creating and positioning the main shapes for the chainsaws fuel tank cap

Step 8

Start working on the chainsaw’s side section, by creating an 18 x 18 px circle (#595252) with a 2 px outline (#3F3939) which we will position exactly 2 px from the grey handle’s outline, leaving a 2 px gap on its left side.

creating and positioning the main shapes for the chainsaws side section

Step 9

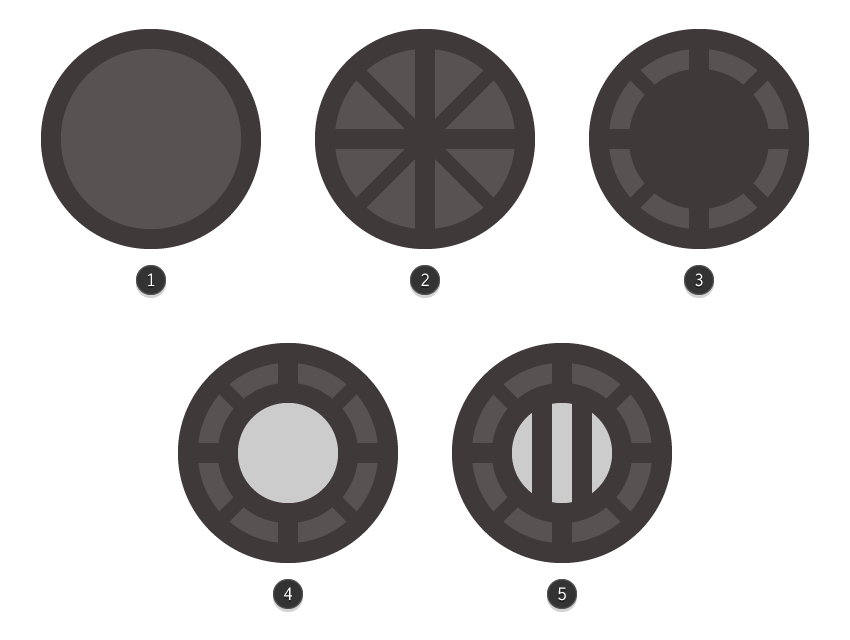

Start adding details to the side section (1) by adding a vertical 22 x 2 px rectangle followed by another 2 x 22 px horizontal one, and two thinner diagonal ones, which we will center over the grey shape, coloring them using #3F3939 (2). Then, add a smaller 14 x 14 px circle (#3F3939) (3) followed by an even smaller 10 x 10 px one (#CCCCCC) (4). Add two 2 x 12 px rectangles (#3F3939) positioned 2 px from one another in the center, selecting and grouping (Control-G) all the side section’s composing shapes afterwards.

adding details to the chainsaws side section

Step 10

Using the Pen Tool (P), draw the little diagonal ignition handle using #E5C489 as your fill color and #3F3939 for its 2 px outline. Once you’re done, group (Control-G) and position the two shapes over on the side section’s bottom-right “corner”.

creating and positioning the chainsaws ignition handle

Step 11

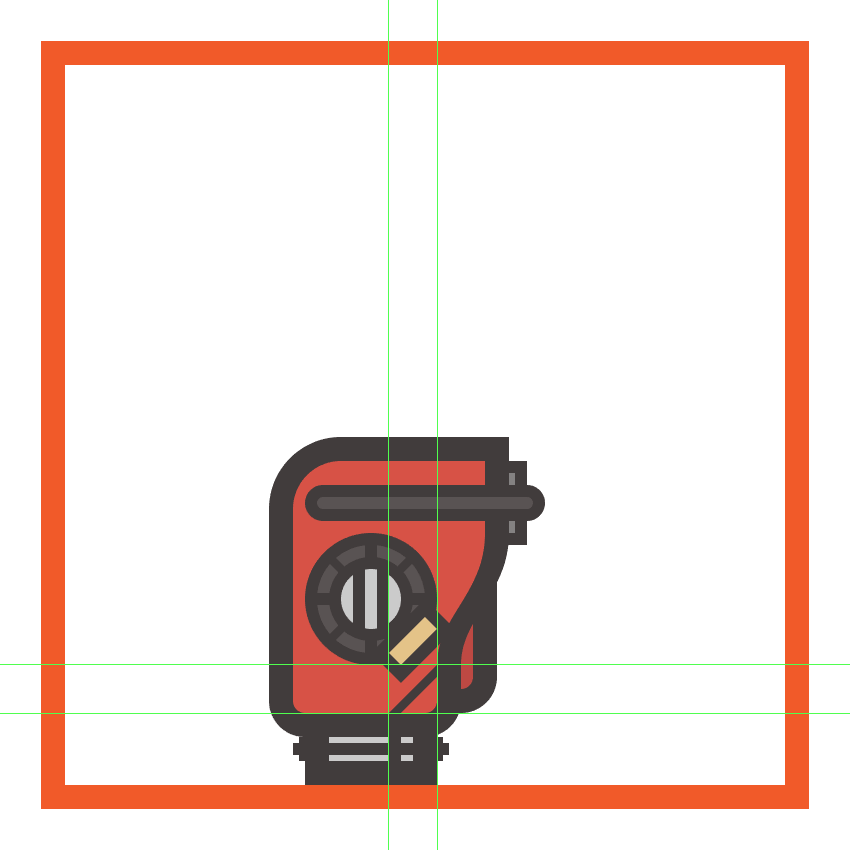

With the Pen Tool (P) still selected, draw a little diagonal reinforcement line (#3F3939) connecting the metal cuff to the right side of the chainsaw’s body.

adding the diagonal reinforcement line to the chainsaws lower body

Step 12

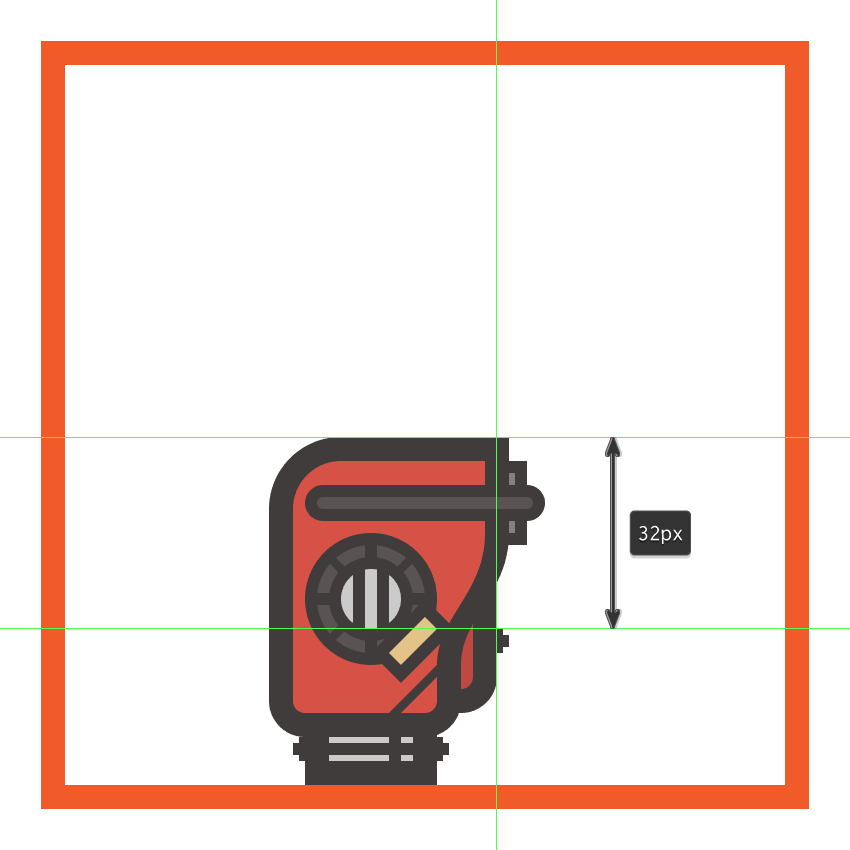

Next, grab a copy (Control-C > Control-F) of one of the metal cuff’s bolts, and position it over on the right side of the chainsaw’s body, at a distance of 32 px from the outline’s top edge.

positioning the little bolt onto the right side of the chainsaws body

Step 13

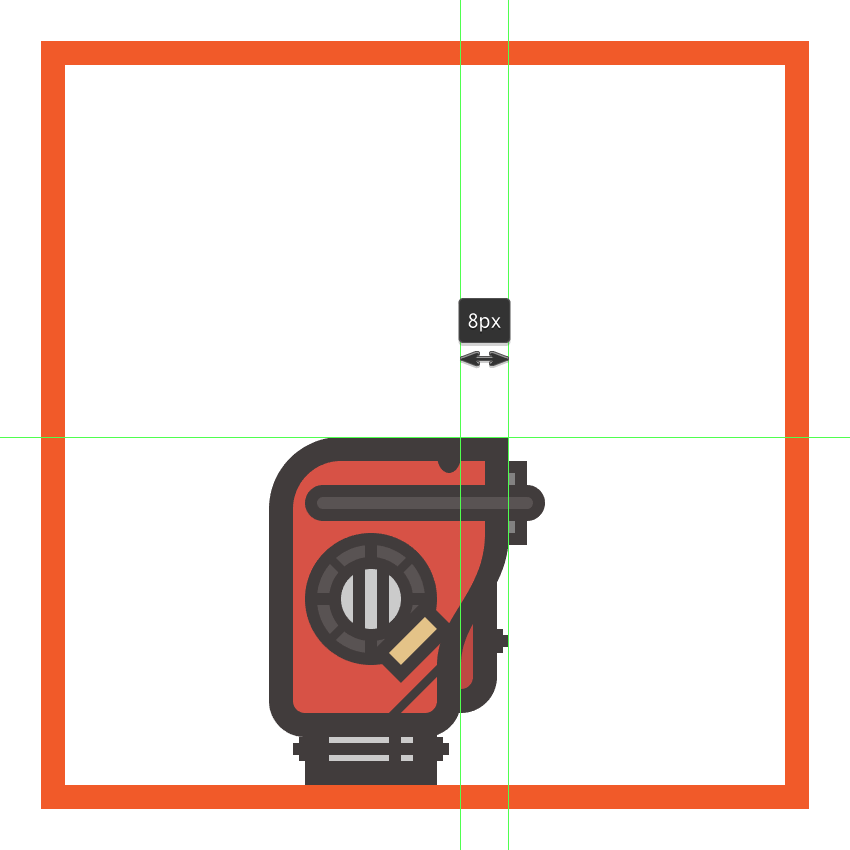

Add a small insertion to the upper section of the chainsaw’s body by creating a 4 x 6 px ellipse (#3F3939) which we will overlap with its outline, positioning it 8 px from its right side.

adding the little insertion to the chainsaws body

Step 14

Use the Pen Tool (P) to draw the little outfacing section found on the left side of the chainsaw’s body, coloring the resulting shape using #3F3939.

Once you’re done, select all the main body’s shapes that we have so far and group them using the Control-G keyboard shortcut.

adding the little outfacing section to the chainsaws body

Step 15

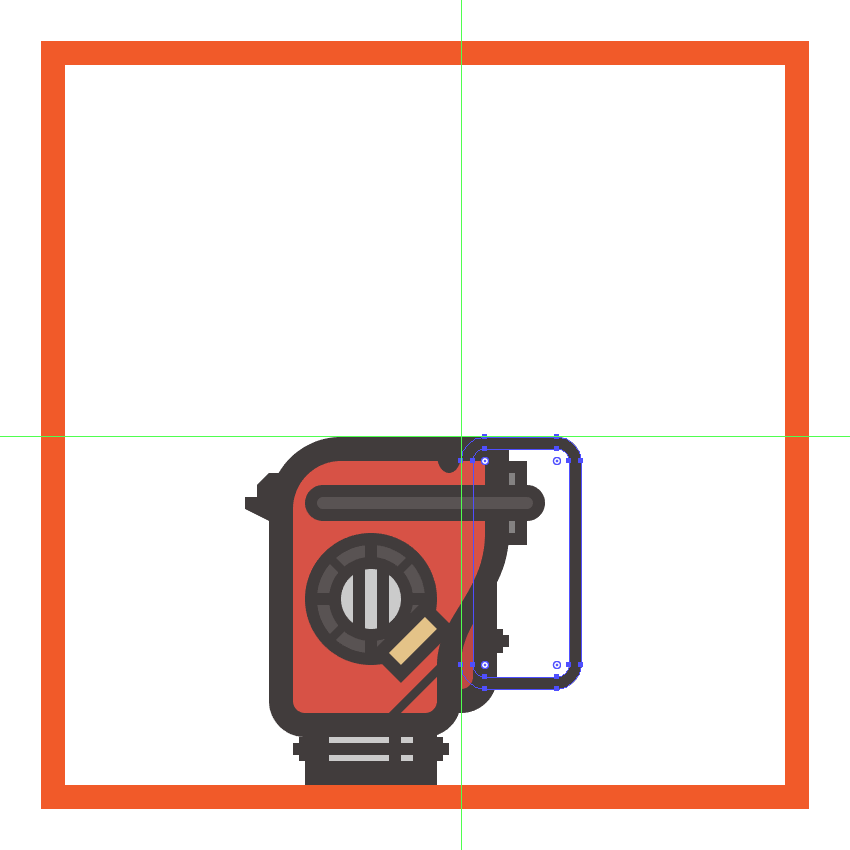

Create the main shape for the top handle using a 20 x 42 px rounded rectangle (#3F3939) with a 4 px Corner Radius, from which we will cut out a smaller 16 x 38 px one with a 2 px Corner Radius, positioning the resulting shape underneath the chainsaw’s body (right click > Arrange > Send to Back), making sure to align it to the outline’s top edge.

creating and positioning the main shapes for the chainsaws top handle

Step 16

Create the wooden section of the handle by drawing a 4 x 26 px rectangle, which we will color using #E5C489, give a 2 px outline (#3F3939) and then group (Control-G). Then position the two shapes in the middle of the handle’s right section, making sure to send them to its back (right click > Arrange > Send to Back).

creating and positioning the wooden section to the chainsaws top handle

Step 17

Add two 1 x 2 px rectangles (#3F3939) to each of the wooden handle’s sides, grouping (Control-G) all its composing shapes together afterwards.

adding the little bolts to the chainsaws top handle

Step 18

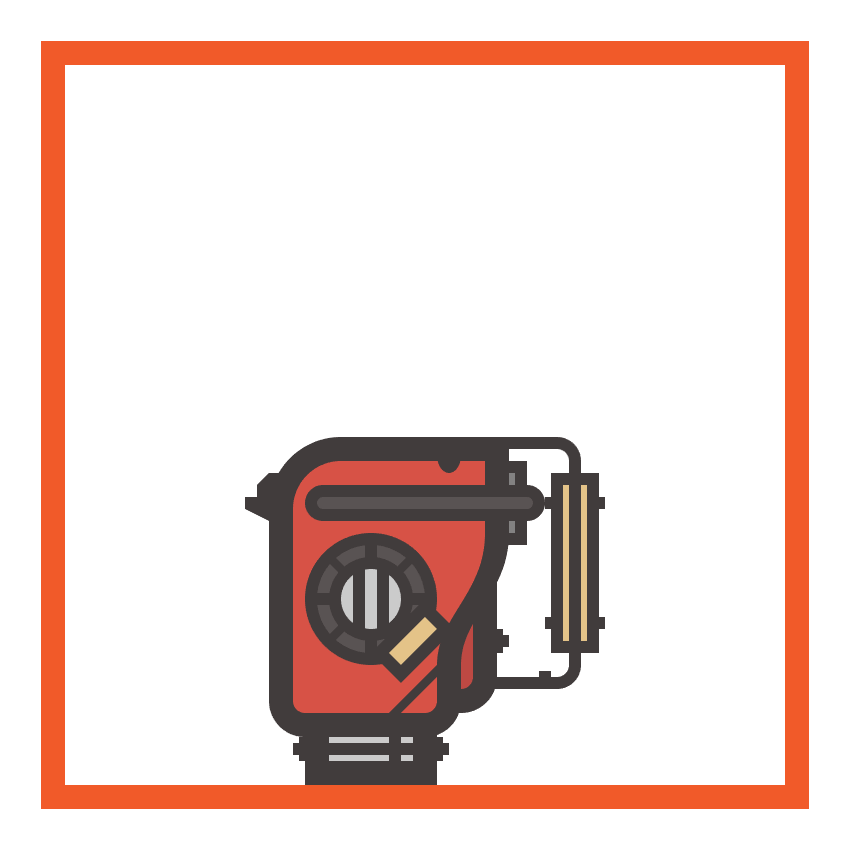

Finish off the top handle by adding a 2 x 1 px rectangle (#3F3939) to its bottom right corner, grouping (Control-G) all the shapes afterwards.

adding the little bolt to the lower section of the chainsaws top handle

Step 19

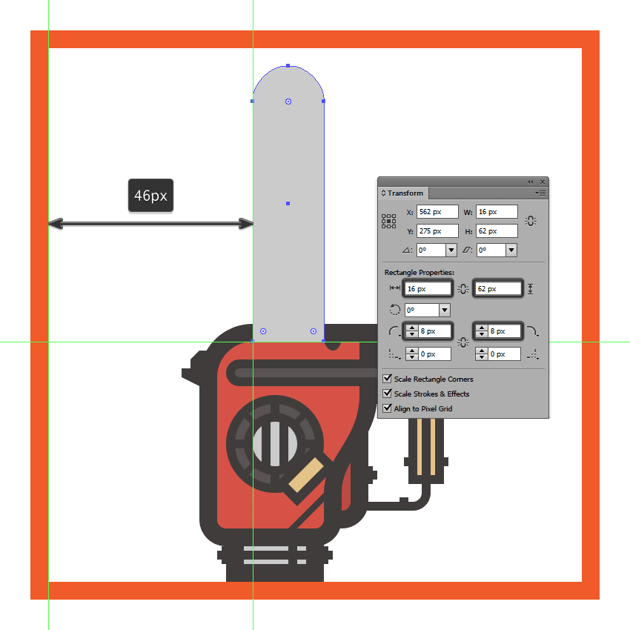

Create the main shape for the blade using a 16 x 62 px rectangle (#CCCCCC) which we will adjust by setting the Corner Radius of its top corners to 8 px from within the Transform Panel.

creating and positioning the main shape for the chainsaws blade

Step 20

Continue adjusting the blade by adding two pairs of side Anchor Points, one 36 px from its top edge, and another one 2 px from its bottom one. Select each of the bottom side anchor points and push them towards the inside by 2 px, smoothing out the sides as seen in the reference image. Give the resulting shape a 4 px thick outline (#3F3939), and then finish the blade by adding the curved delimiter and the little 2 x 2 px circle (#3F3939) acting as a screw.

Group all the composing elements together, and then make sure to position them underneath the chainsaw’s body (right click > Arrange > Send to Back).

adding details to the chainsaws blade

Step 21

Finish off the icon by adding a little 8 x 2 px rectangle (#3F3939) to the blade’s bottom section, which we will adjust by individually selecting and pushing its top Anchor Points to the inside by 1 px.

Once you’re done, select and group all its composing shapes together using the Control-G keyboard shortcut.

chainsaw icon finished

The End

There you have it: a nice little Evil Dead themed icon pack that any true fan would kill for. I hope you’ve found the steps easy to follow and most importantly learned something new during the process.
