How to Create and Use Perfect Shapes in CorelDRAW

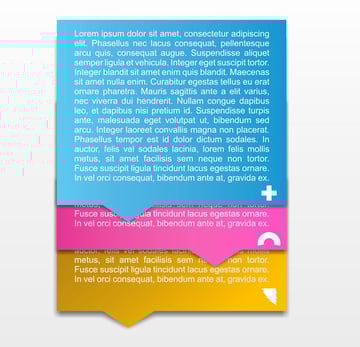

Final product image
What You'll Be Creating

In this tutorial you'll get a full introduction to creating and manipulating Perfect Shapes, the pre-made shape tools that are perfect for creating various infographics and other designs in CorelDRAW. Additionally, I'll introduce you to the Drop Shadow Tool, which not only adds drop shadows to objects, but also allows you complete control over the shadow's shape, range, and intensity.

1. Using Perfect Shapes in CorelDRAW

Step 1

You'll find an assortment of Perfect Shapes in the Toolbox under the Polygon Tool (Y) icon. I chose Flowchart Shapes to start this quick tutorial with, and from there I chose a shape from the drop-down menu in the Property Bar. Drag out the chosen shape and we'll manipulate it in the next step.

Choosing and using perfect shapes

Step 2

Perfect Shapes are only so manipulable before they're Converted to Curves (Control-Q). You can ScaleRotate, and play with the object's properties as needed, but to add or delete nodes and really play with the shape as you would any other object, you must convert the object to its curves.

Working with this particular shape, open the Object Properties docker and set the Outline to None. Under Fill, choose Fountain Fill and select the colors of your choice. I opted for a light and medium hue of cyan. Right-click and Convert to Curves if you'd like to further manipulate the shape at the node level; otherwise let's move on.

Editing the Perfect Shapes properties

Step 3

Finally with this shape style, Copy (Control-C) and Paste (Control-V) three instances of the shape, layer them on top of each other (see below), and hit Distribute Center Vertically so that your little wavy shapes line up evenly. Change the Fountain Fill of the front two shapes in the Object Properties docker, and let's move on to additional styles of Perfect Shapes.

Distribute and recolor objects

2. Special Nodes and Effects on Text

Step 1

Select Banner Shapes from the Toolbox and choose the second banner from the drop-down menu in the Property Bar. Draw a banner. Note the red and yellow nodes in the upper left of the Perfect Shape.

Using the Shape Tool, grab the yellow node and move it on the vertical axis. Reducing or increasing the size of the banner's left tail also effects the center fold and right tail.

This time, grab the red node with the Shape Tool. Move the node on the horizontal axis and note how either lengthening or shortening the center fold of the banner also affects the tails.

Manipulate red and yellow nodes on Perfect Shapes

Step 2

Perfect Shapes will allow anything created on their paths to be affected when red and yellow nodes are manipulated. Using the Text Tool (F8), type within the shape's boundaries. When you do so, Perfect Shapes react the same way as other objects with type inside them.

Type on the path of the Perfect Shape. In this case, do so on the center fold of the banner. Once you do, manipulate the red and yellow nodes. Note how the text moves with the changes in the Perfect Shape no matter which path the type was placed on within the object. In a normal object, the type would only be affected if a node on that exact path was manipulated.

Incorporate the type tool into objects

3. Creating Simple Infographics

Step 1

Now that we've gotten the basics of Perfect Shapes and their functions, let's go over a common use of the tools: infographics. While complex infographics can easily be created within the program, to keep this brief, let's create a simple design now.

Under Callout Shapes, select the first design in the drop-down menu. Grab the red node and pull it down beneath the rectangle of the Perfect Shape. Be careful to make sure the node is in the center of the Callout Shape's tail.

As we did before, set the Outline to None and Fill to the Fountain Fill colors of your choosing.

Adjust the tail and color properties of a Callout Shape

Step 2

Copy and Paste three instances of the Callout Shape. Place each copied object behind the last, and move each down so they peek out from under the last one slightly. Change the Fountain Fill of the copied shapes to shades of pink and yellow.

Select the center shape and hit Mirror Horizontally in the Property Bar so the tails of the shape are staggered.

Stack and stagger the callout shapes

Step 3

From the Basic Shapes options, select three different shapes for the bottom right corner of each Callout Shape drawn previously. Note how shapes with red nodes were altered as needed.

Place and alter additional perfect shapes as needed

Step 4

Select the top Callout Shape and, using the Drop Shadow Tool (found in the Toolbox) drag out a Drop Shadow from the blue shape that aligns with the shape itself but is placed slightly below.

Hold down Control to keep the drop shadow on a straight line while pulling it out from the shape. In the Property Bar, set Shadow Feathering to a value of 4-7. Repeat this on the other two shapes.

Adding a simple drop shadow to the callout shapes

Step 5

Use the Type Tool to add whatever information your infographic may need. The design for this tutorial is intended to be an interactive infographic which would reveal each shape and its information as it was clicked.

To create this look, place each text object directly above its intended object in the Object Manager docker.

Add text to your design

Great Job, You're Done!

The next step of where your design goes is in your hands. Perhaps a static infographic, with a different composition, or perhaps it's the start of an interactive design compiled in a program like Corel Video Studio or Adobe After Effects. Regardless of where you take the techniques explored in this tutorial, do share your creations with Perfect Shapes in the comments below.
