Create an Isometric Pixel Art Billboard in Adobe Photoshop

Difficulty:IntermediateLength:MediumLanguages:
This post is part of a series called Isometric Pixel Art.
Create an Isometric Pixel Art Coffee Shop in Adobe Photoshop
Create an Isometric Pixel Art City Hall in Adobe Photoshop
Final product image
What You'll Be Creating

Advertising is everywhere, and it's possible that it will need to crop up in your pixel art world. So today we're going to find out how to turn a regular image into its isometric pixel art equivalent by making a billboard ad.

Please refer to the pixel art character tutorial before doing this one.

1. Dimensions

Let's first do the billboard; this will be our canvas-within-a-canvas for most of the actual work.

We'll use the character to define the height of our billboard post.

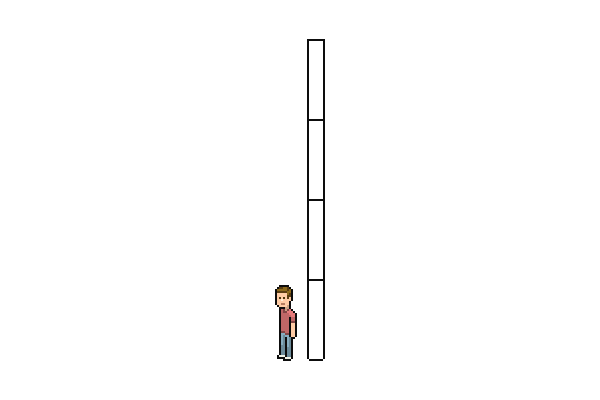

Step 1

Four times the character's height seems tall enough, and anyway this would be easy to adjust later on.

the height of the post

Step 2

The width of the post we can set to about as wide as the character.

the width of the post

Step 3

Finish outlining the post. The bottom line curves slightly to show the post is cylindrical.

the shape of the post

Step 4

And then we add lines for the billboard itself.

the billboard

Step 5

Fill with color.

coloring

Step 6

And add some shading, especially to give volume to the cylinder.

shading

Our canvas is ready.

2. Adapting the Picture

Isometric pixel art isn't meant to be realistic, so to properly incorporate a photograph into a pixel art scene, the picture should go through a sort of transformation to make the style match the rest of the illustration.

First, we'll need a picture.

Step 1

I put this burger together, but you could do an ad for a car or whatever you may feel like. Also, you may use this picture if you want.

I added the name of the burger because that'll be part of the ad and because I wanted it in a big, stylized font. There'll be more lettering, but it'll be best to do the rest directly in pixels.

the ad

Step 2

To adapt the picture to the isometric view, you need to transform (Edit > Free Transform…) the photo and set the Vertical Skew to 26.5˚.

And then resize to match the billboard. It's a good idea to do this in a layer above the billboard and with some transparency set to the layer to see the billboard edges behind it.

placing the ad as reference

Step 3

You can continue to trim and adjust the picture. Here I made sure the burger and the word were well positioned within the billboard canvas.

trimming

Step 4

As I'm using a solid background color I have applied it to the billboard canvas: red all over with a line of highlight in the top border.

trimming

Now let's move on to…

3. Lettering

For most of the small lettering it'll be best to work directly pixel by pixel. We'll do that, but we'll first get the burger name which was done in large letters.

Step 1

Here I traced the "C", the "l" and the "o" right over the reference lettering (but on a different layer), and instead of tracing all of the letters, I copied the "o" because the rest of the letters are similar enough to it.

tracing the basics of the letters

Step 2

The rest of the letters shouldn't take a lot of work to nail.

finishing the big letters

Step 3

We'll add more details to the ad. Let's say the Clogger is a new burger that people must try out. So we'll add the word "NEW" right next to Clogger in small slanted letters.

We can get the "N," "E" and "W" (and most letters in the alphabet) easily out of these "8" looking shapes.

adding new

Step 4

Erase a few pixels and you'll have the word you want.

new complete

Step 5

Normally it's best to avoid anti-aliasing, but these "rules" are more flexible in a 2D image within the isometric pixel art. Here, Clogger gets a smoother treatment and also a bit of shadow.

shading the big letters

Step 6

We'll add a last bit of lettering to direct customers to the restaurant. We'll have "ONLY AT [restaurant logo]"

So we need three little lines per letter, and they'll be in this case just three pixels wide. Again, we can get the letters we'll need from a basic structure.

more lettering

I decided to make a very simple logo. Just something that resembles enough a recognizable fast food logo.

Step 7

Then place the last bit of lettering on the billboard.

lettering complete

And if you want, you can go ahead and merge all the lettering with the billboard layer.

4. Tracing and Pixelating

To begin tracing the burger, leave the billboard in one layer and the reference in another layer above, and start your work in a new layer above all previous ones.

Step 1

Here I have traced the buns with black lines, using cleaner, less jagged lines as much as possible.

tracing the buns

Step 2

You can then fill the buns with black to make a solid shape and then fill with the color you'll use for the bread, which can be eyedropped right out of the reference picture if you want.

filling the buns

Step 3

Now let's add detail to the bun. We get a little peek at the inner sides of the bread, which are usually lighter.

shading the buns

Step 4

Then add a bit of shading—for the bottom of the bun it's mostly to convey volume, while for the top of the bun it'll show slightly darker baked areas of the bun.

shading the buns

Step 5

The idea is to reduce the complexity of the shapes as well as the number of colors, so a darker shade and a highlight will be enough to complete the coloring for the buns.

shading the bun

Step 6

Add one final detail to the bun: sesame seeds. They're light pixels with a bit of shadow underneath. You can do the shadows on a different layer with black and then reduce the layer opacity. If you want, try different blending modes for the layer.

sesame seeds

Step 7

Now that the buns are done, let's move on to the patties. We'll make them both identical so that we only need to do one. It's OK if we start to move away slightly from the reference—in fact, it's better to do that unless you're doing a pixelated version of a portrait, in which case you'd really like to get the likeness across.

outlining the patties

Now that we're diverging a bit from the reference and to avoid confusion with the whole mess of pixels it has, we'll move to the side and glance at it for reference without needing to trace right over it.

Step 8

Here are our two big patties with a patty color already and the reference no longer being a distraction.

filling the patties

Step 9

Let's give volume to one of the patties: lighter on the top and also on the center.

Unlike most of the rest of our pixel art, we won't use dark outlines for these elements as we're doing a 2D image and not a 3D element in the pixel art world.

shading one patty

Step 10

Finish the shading and copy it for both patties. Then on a new layer you should add some texture to the beef. It doesn't need to be complex at all.

texturing patty

Step 11

But it should be subtle, so adjust the opacity and then merge down.

patties finished

Step 12

Beef patties done. Let's cheese them up.

A single line of yellow pixels across the patties will be a good starting point.

cheesing it up

Step 13

Now let's make the cheese corners dropping down onto the patties. This is starting to get delicious.

They should be offset a little. You'll notice the biggest cheese corner is basically the same for both patties but in different positions, and then there's a bit of another corner merely peeking in (different positions).

adding cheese corners

Step 14

Add some shading to the cheese. The edges should be lighter, and the right side is a bit darker. Also, a bit of shadow cast over the patties helps give them volume and contrast.

shading the cheese

Cheese done.

Step 15

Now we get to the vegetables. We'll have one big slice of tomato and above it a layer of pickles/green-stuff and above that some onion/mayonnaise/white-stuff. Much like in our reference.

adding vegetables

Step 16

And here we're giving these elements some volume with the shading: lighter at the center, and in the case of the tomato slice, also at the top.

There are different light areas for the green-stuff, which should help to convey three different pickles. Same thing with the white-stuff.

shading vegetables

Step 17

To finish these vegetables I'm adding a shadow/outline hybrid that helps separate them and make them pop a bit more. It's simply a darker line along the top edge of each element.

shading vegetables

Step 18

Let's continue stuffing our burger with more tasty fillings.

In the middle we'll have some onion rings. On a new layer you can do some basic shapes for it. It should feel pretty free-form so go ahead and doodle it on, making some slightly wavy shapes.

doodling some onion rings

Step 19

The wavy shapes would be rings so they'll be thicker in the middle and thinner on the edges as they disappear into the burger. Fill the rest of the space with a darker, redder color.

shading onion rings

Step 20

Add a little darker shading to the rings, and a touch of lighter pixels, like a greasy sparkle on the rings.

finishing onion rings

If you're pleased with the onion rings you can merge the layer down.

Step 21

And finally we do something very similar to the bottom fillings, which will be pulled pork.

The shapes for this are irregular but squarer. Just a bunch of little chunks, which can be doodled as well. They should be done in a new layer.

doodling some pulled pork

Step 22

And then colored red or brown with a darker hue on the sides and even darker in between and around the shapes.

shading pulled pork

Step 23

Do some shading. The darkest lines help to distinguish the volumes, but they don't need to work the same as outlines, so we can get rid of some of those.

shading pulled pork

Step 24

As with the rings, we add a few light pixels, like greasy, shiny bits.

I moved the bottom bun up a pixel because I thought it looked better.

finishing pulled pork

Now I'm happy with my burger. I merged all elements into one layer.

Step 25

And to finish I added a cast shadow to the burger.

adding cast shadow

And that's it. The billboard is done!

Congrats!

The billboard ad is complete. The new Clogger looks pretty delicious; clogged arteries sound like a small price to pay.

Now you know how to turn a picture into isometric pixel art. I hope that's useful!
