In this tutorial, we'll make a creative blog layout using mostly simple shapes, a few brush techniques, some images, and a dose of Photoshop ingenuity. Creating web design layouts is easier than you may think. You can learn to build attractive designs rapidly. Creating this design will take less than two hours and you'll learn some professional tips along the way. Let's get started!
Final Image Preview
Take a look at the image we'll be creating. Want access to the full PSD files and downloadable copies of every tutorial, including this one? Join Psd Plus for just $19/month. You can view the final image preview below. The final image is below or you can view a full size image here.
- Program: Adobe Photoshop CS4
- Difficulty: Intermediate
- Estimated Completion Time: 1.5 hours
To complete this tutorial you need to download the 960 Grid System. Now let's begin.
Open the "960_grid_12_col.psd" template in Photoshop. It will look like the image shown below. The Grid System is useful because it allows you to align the layout quickly.

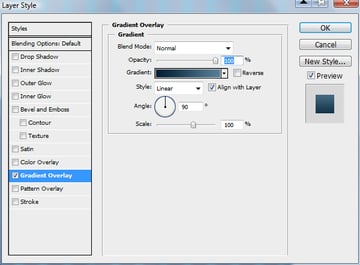

Select the background layer and press Command + J. This is the shortcut to duplicate a layer. Using shortcuts will speed up your design process. For this new layer we'll add a nice gradient color. Now go to Layer > Layer Style > Gradient Overlay and use the following settings.
Now hide the Grid because to see the design better. Keep your grid visible because you can align the shape better. Select the Rounded Rectangle Tool, and create a shape on top of the layout.
For this navigation bar add the following layer styles.
Using the same tool (Rounded Rectangle Tool) create another shape and fill it with the color: #001424.

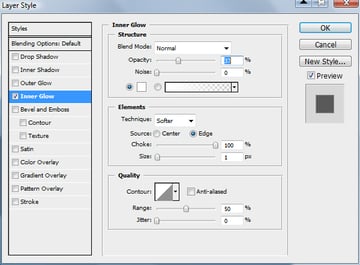

Add the following layer style for this shape.
Create another shape with the Rounded Rectangle Tool using white for the color.

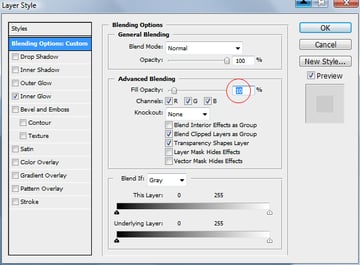

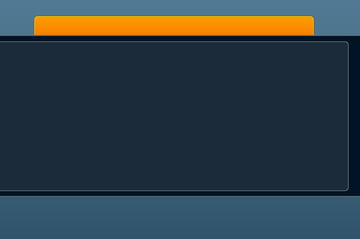

Also for this shape add some simple layer styles and change the Fill value to 10%.

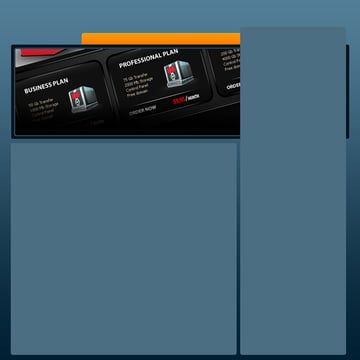

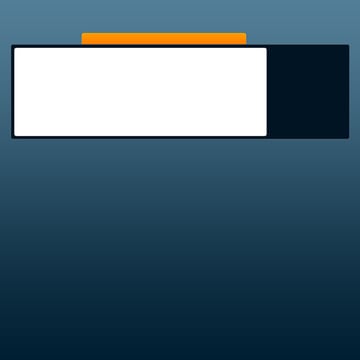

Below is the result so far.
Over this last shape place an image. I've use some images from some tutorials I've made for Grafpedia, which serve as good image examples for this design. You should use your own images though of course.
Now you need to load the selection for this image. To load the selection, select the layer in your layer palette and then go to Select > Load selection. You will see a selection around the image like in the following image.
Create a new layer on top of all layers by using this shortcut: Command + Shift + Alt + N. Select the Brush Tool, and choose a smooth round brush. Over the new layer draw a horizontal line. Hold down the Shift key when you make the drawing. In this way the drawing will be perfect horizontally.

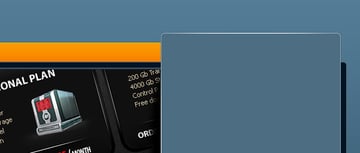

Press Command + D to deselect. Now use the Rounded Rectangle Tool to create another shape with the color #4b6e82.

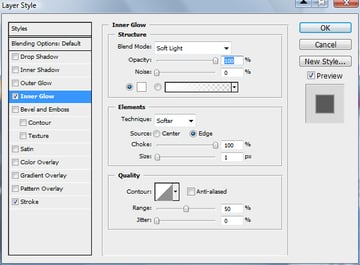

For both shapes add the following layer styles.
Grab the Ellipse Tool and create a shape right under the sidebar shape.

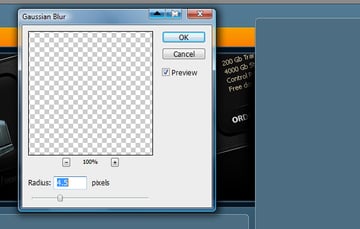

Go to Filter > Blur > Gaussian Blur and use the following settings. Photoshop will ask you if you want to Rasterize the shape, go ahead and press OK.
As you can see from the previous step, we've created a shadow there. Now let's accentuate this shadow by adding some lights. Select the Line tool, and set the weight of the line to 1 pixel and then create a vertical line as shown.

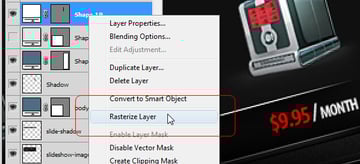

Right-click on the layer and choose Rasterize layer.
Select the Eraser Tool, and choose a smooth, round brush at around 100px. Use it to Delete the top part and the bottom part of the line.
With the same technique create another line on top of the sidebar.
Right under this white line create another one that is black.
In the middle of the layout create another shape with the Rounded Rectangle Tool.
Create some shapes with the Rectangle Tool. Over these shapes we'll add some images later.
Add the same layer styles for all these three shapes.

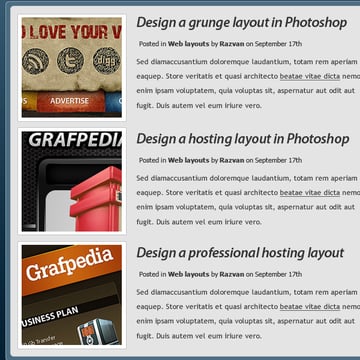

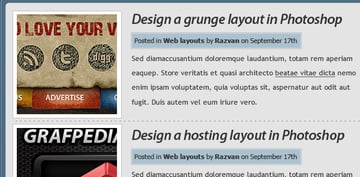

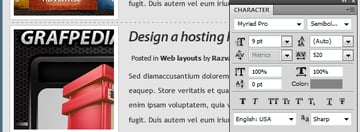

Now it's time to add the images over these white shapes. Also add some text with Horizontal Type Tool on the right side.
Create a dashed line between the posts with the Horizontal Type Tool.
Create another three shapes and place them under the Post Metadata text.
Above the sidebar create a search box using the Rounded Rectangle Tool. In the same time you can see that I've placed some text over the navigation bar too.
Please add the following layer styles for this search box.
Now use the Rounded Rectangle Tool to create another shape. Place this shape over the previous shape. Also, add an icon on the right side.

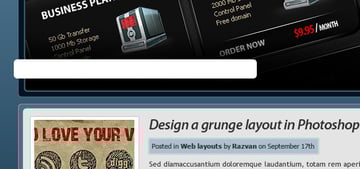

Right above the slide show create another white shape.
Add the following layer styles for this shape.
Hold down the Command Key and with the Pen tool selected press on the edge of the shape twice. The anchor point will become active and we'll be able to modify the look of the shape.
With the Command key still pressed select the following anchor point.

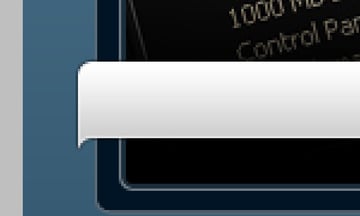

Hold down the Shift key and press once on your Down arrow key from your keyboard. The anchor point will move down and you will have the following result.

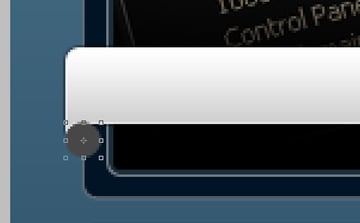

Use the Ellipse Tool to create a circle.
Right-click on the layer and choose Rasterize Layer. With the Rectangular Marquee Tool make a selection like that shown below.
Be sure you have the layer with this small circle selected and then press the Delete key. Drag this layer above the background layer in your layer palette. This is my result so far.

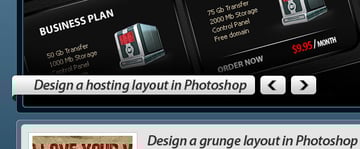

Now we'll add two buttons to allow the sites users to change the slide show image. You will need to use the Rounded Rectangle Tool to create the shape and then you can use the Custom Shape Tool to add the arrows.
Over the sidebar create some white shapes as shown below.

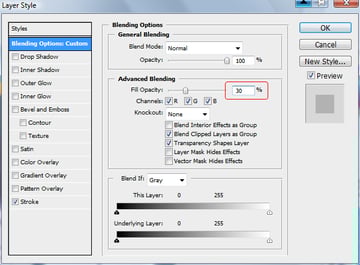

For all these white shapes please add the same layer styles.

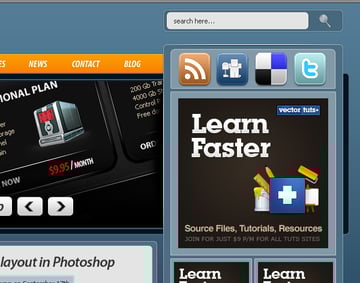

Add some banners in the sidebar. Also, add some social bookmarking icons on top of the site design. There are numerous free icons available across the web to choose from.

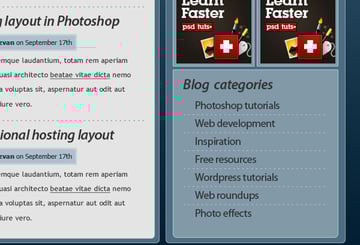

Now add some text with the Horizontal Type Tool on the bottom of the sidebar. Also, add minus signs between the text using the Horizontal Type Tool to create dashed horizontal rules.

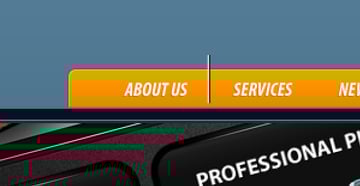

Let's add other details on the navigation bar. Use the Line Tool to create two small lines. Zoom into this image so you can see better what you're doing.
Select both layers inside your layer palette. To select both layers you need to hold down the Command key when selecting both layers. After you have the lines selected press Command + E to merge the layers into a single one. Select the Eraser Tool and use it to delete the top part and the bottom part of the lines. Please note that you need a soft, round brush with a size of 20 pixels.

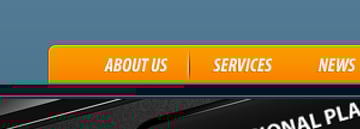

Change the blending mode for this layer to Soft Light. Duplicate it a few times and place the line between the other text buttons.

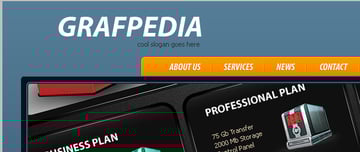

Now create the text for this Wordpress layout's logo at a size that looks good to you.
Add the following layer styles for this text logo.
Right above the "background" layer create a new layer (Command + Shift + Alt + N). With the Brush Tool make a highlight mark there with a soft, round brush as shown.

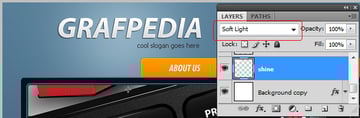

Change the blending mode for this layer to Soft Light.
The design is completed! I hope you enjoyed creating! The final image is below or you can view a full size image here.
